CoatingOptions

We construct our headers from 16 gauge mild steel tubing. Mild steel is the most common form of steel used to fabricate automotive headers due to its carbon properties which makes for easy forming. Mild steel is weldable, very hard and although it rusts, it is very durable. We offer the following exterior and interior coating options to protect and seal tubes in order to prevent rusting. The ceramic coating options enhance the appearance of your headers and further extend part life.

Maintenance & Care instructions

Option C5: Polished Ceramic Coating with a Thermal Barrier ^[1,^2,^3]

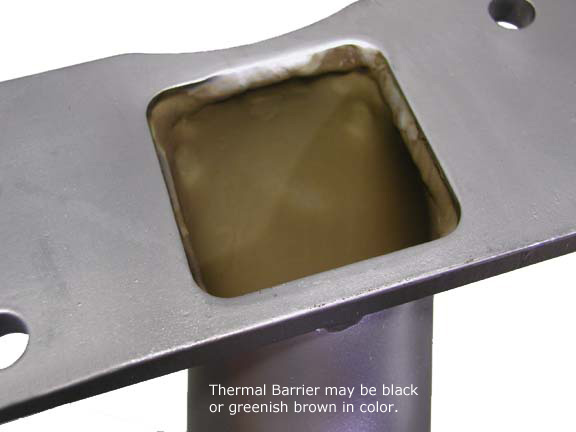

An appealing silver high-luster finish applied to the steel surface to protect against rust, corrosion and withstands temperatures up to 1200°F. Exceeding this temperature will result in discoloration of the header tubes. The thermal barrier is a protective inside coating which increases part longevity by reducing under-hood temperatures by 50 degrees protecting component parts from thermal fatigue.

Option C4: Ceramic Coating with a Thermal Barrier ^[1,^2,^3]

A silver matte finish applied to the steel surface to protect against rust, corrosion and withstands temperatures up to 1200°F. Exceeding this temperature will result in discoloration of the header tubes. The thermal barrier is a protective inside coating which increases part longevity by reducing under-hood temperatures by 50 degrees protecting component parts from thermal fatigue.

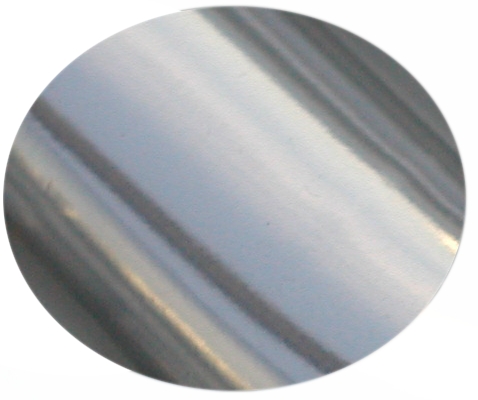

Option C3: Exterior Polished Ceramic Coating ^[1,^2,^3]

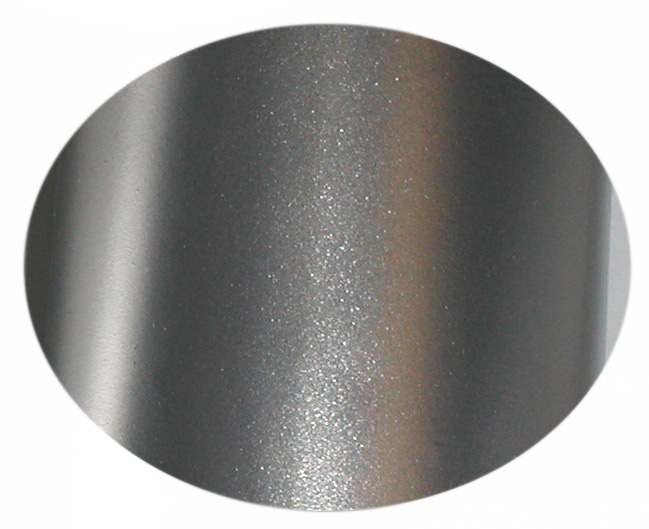

Option C2: Exterior Ceramic Coating ^[1,^2,^3]

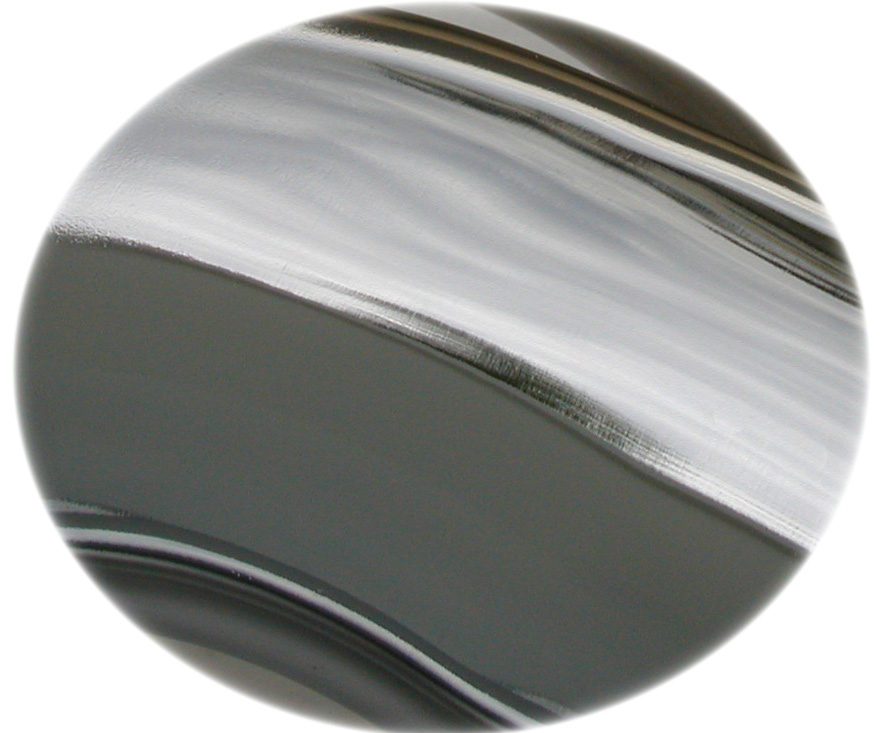

Option C1: External Nickel Chrome Plated ^[1^]

A bright and shiny decorative chrome finish. Exhaust components which are chrome plated are much more susceptible to bluing, blistering, peeling and corrosion due to extreme exhaust temperatures.

This process carries no warranty other than to be free from defects at the time of purchase prior to installation only

Option C0: Raw Steel (Bare) ^[1]

Our headers are constructed of 16 gauge mild steel tubing. It is weldable, very hard and although it easily rusts, it is very durable. Mild steel is very susceptible to rust, it must be high-temp painted or protected and sealed in order to prevent rust from damaging tubing. A light coat of oil or grease will aid in rust control. (This note does not apply to Stainless Steel Headers and Exhaust Systems)

No warranty offered other than to be free from defects at the time of purchase prior to installation only

Under no circumstance will we replace, repair or refund headers purchased raw

High-temp paint is recommended upon receiving headers

¹ Note: Exhaust corrosion will occur if moisture (condensation) is not cleared out of the tubes. Make sure that the vehicle is driven at least 20 to 30 minutes whenever the car is started to completely dry out all liquid / acid that is created by the combustion process in the engine. Failure to do so will cause pre-mature rotting of the tubes from the inside out.

²Warning: First Engine Runs

We strongly suggest that you use an old set of headers or set of cast iron manifolds for your first engine run / cam break-in. This will insure that you will not damage the coating and void the warranty of your new headers. Header coating damage usually occurs during the first engine run / break-in when the exhaust temperatures exceed 1200ºF. Excess exhaust temperatures are normally caused by excessively rich or lean air / fuel mixtures and / or incorrect ignition timing.

³ 2-Year Limited Ceramic Coating Warranty

EXHAUST SYSTEM COATING OPTIONS

Ceramic coating detail & ordering procedure

(!) Special-Order ceramic coating options: Allow 6-8 weeks for coating process.

(!) Non-refundable deposit required to start Special-Orders.

Exhaust systems are made from 16 gauge aluminized tubing and does not require coating. Ceramic coating options are available as an option/personal preference. Ceramic coating provides additional protection, performance & longevity.

When ordering, add the 2-digit suffix to the end of the exhaust system part number or the exhaust component part number.

Example: Exhaust system part no: B30MWM6870-C4, Tailpipe part no: A25TP-C2

* Mufflers & Catalytic Converters are exterior coated only.

Maintenance & Care instructions

COATING OPTION SUFFIX

MOPAR CLASSICS: EXHAUST SYSTEMS
C2

C3

C4*

C5*

MWM:

EXHAUST SYSTEM FROM MANIFOLDS-BACK     Including Mufflers*
Exhaust-pipes, Mid-pipes (H or X), Mufflers & Tailpipes.

B30MAX:

MAX-WEDGE EXHAUST SYSTEMS
5-pc Mid-section Assembly, Mufflers & Tailpipes.

$ 600.10

$ 674.90

$ 727.60

$ 802.40

MNM:

EXHAUST SYSTEM FROM MANIFOLDS-BACK     (No mufflers)
Exhaust-pipes, Mid-pipes (H or X) & Tailpipes.

$ 438.60

$ 494.70

$ 566.10

$ 622.20

HWM:

EXHAUST SYSTEM FROM HEADERS-BACK     Including Mufflers*
Reducer/Adapters, Mid-pipes (H or X), Mufflers & Tailpipes.

$ 552.50

$ 618.80

$ 654.50

$ 720.80

HNM:

EXHAUST SYSTEM FROM HEADERS-BACK     (No mufflers)
Reducer/Adapters, Mid-pipes (H or X) & Tailpipes.

$ 391.00

$ 438.60

$ 493.00

$ 540.60

*Exception: Mufflers coated external only.

COATING OPTION SUFFIX

MOPAR CLASSICS: EXHAUST SYSTEM COMPONENT PARTS	C2	C3	C4	C5
Reducers or Adapters ...2 pcs.	$ 66.30	$ 73.10	$ 73.10	$ 79.90
Exhaust-pipes or Shorty adapter pipes ...2 pcs.	$ 113.90	$ 129.20	$ 146.20	$ 161.50
H-pipe Assembly (mid-pipes) ...2 pcs.	$ 171.70	$ 193.80	$ 219.30	$ 241.40
X-pipe Assembly (mid-pipes) ...3 pcs.	$ 171.70	$ 193.80	$ 219.30	$ 241.40
Mufflers* ...2 pcs. *Mufflers coated external only.	$ 161.50	$ 180.20	N/A	N/A
Tailpipes ...2 pcs.	$ 153.00	$ 171.70	$ 200.60	$ 219.30
Aluminized Exhaust Tips ...2 pcs.	$ 66.30	$ 73.10	$ 73.10	$79.90

Prices do not include Shipping, Handling or California Sales Tax, if applicable.

Prices subject to change without notice.

Updated: August 23, 2023
