GASKETS & FLANGES

To compliment TTi’s high quality headers, TTi uses the Interface Solution HTX-900 exhaust gasket material.  A proven hi-performance exhaust gasket composite used extensively within the automotive high performance racing industry, where characteristics such as structural strength and high-temperature load retention are required to withstand severe under-the-hood operating environments.

HTX-900 is a high density non-asbestos fiber metal core composite specifically designed for exhaust manifold header and collector gasket applications. The composite construction consist of two graphite coated, heat resistant fiber blend / NBR bound sheets, mechanically and chemically fused to an expanded steel core.  Its robust construction provides excellent sealing performance, high temperature load retention, chemical resistance, structural strength and clean release characteristics upon disassembly.

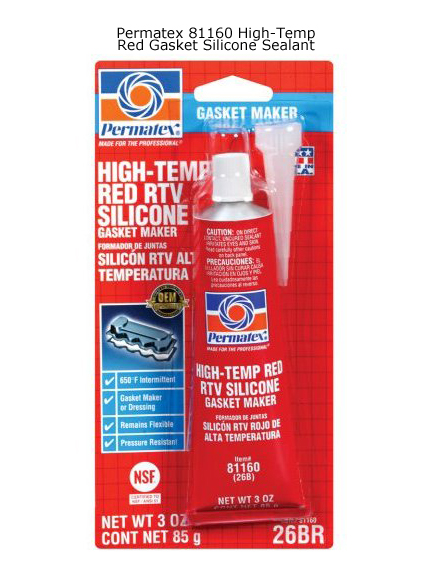

Gasket Silicone Recommendation:  Use a very thin layer of High Temp Red Gasket Silicone Sealant on each side of gasket  ...See Details





SMALL BLOCK                    SMALL BLOCK                    SMALL BLOCK



318 POLY



GASKET



FLANGE

  • 318 Polyspheric heads

  • Round-ports

  • For use with header no:  318POLY

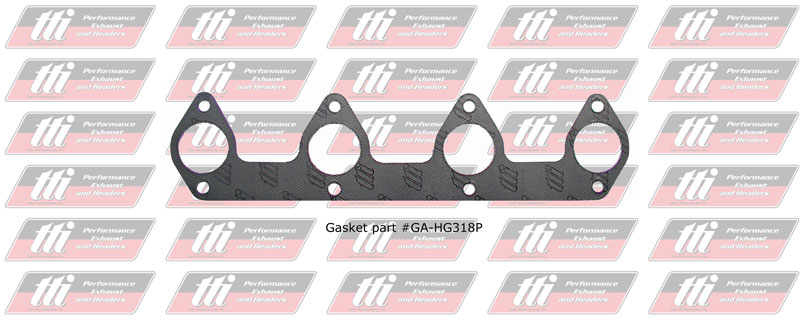

Part No:  GA-HG318P

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-318P   N/A

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

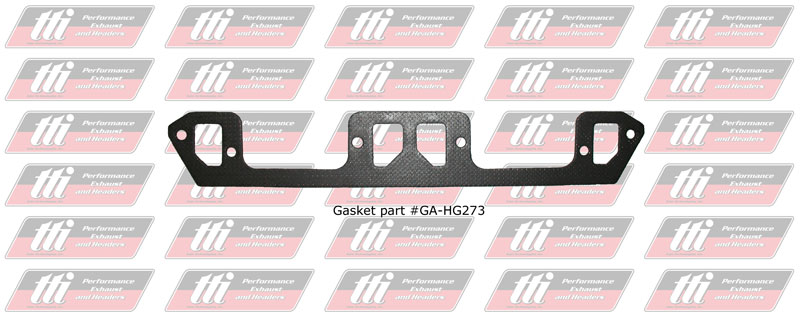

EARLY LA-ENGINES



GASKET



FLANGE

  • Small-port early LA-style cylinder heads

  • Port size:  1.09w x 1.55h

  • For use with header no's:  636A273, 340273



Part No:  GA-HG273

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.





N/A



LA/A-ENGINES

GASKET

FLANGE
  • Cylinder heads:  Stock/OEM, Edelbrock Performer RPM, Indy T/A, Mopar Perf Alum LA, Mopar Perf Cast-iron, RHS-Indy360X

  • Engine size:  318, 340, 360

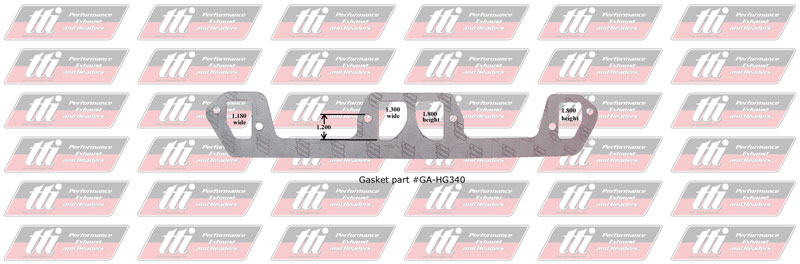

GA-HG340

  • Port size:  1.30w x 1.80h

  • For use with header no's:  636A, 340



Part No:  GA-HG340

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

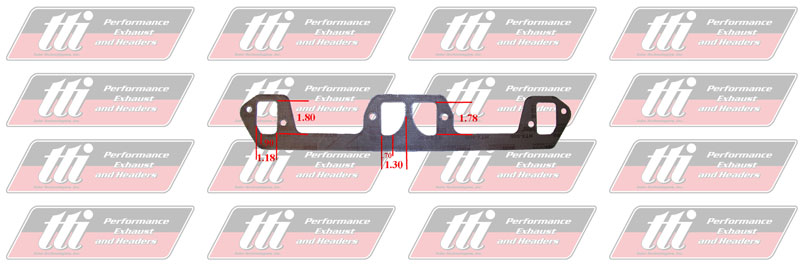

GA-HG340ER

  • Outer ports size:  1.18w x 1.80h

  • Center ports size:  1.30w x 1.80h

  • For use with header no's:  34017835, 34025



Part No:  GA-HG340ER

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340ER

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.



W2 ECONO

GASKET

FLANGE

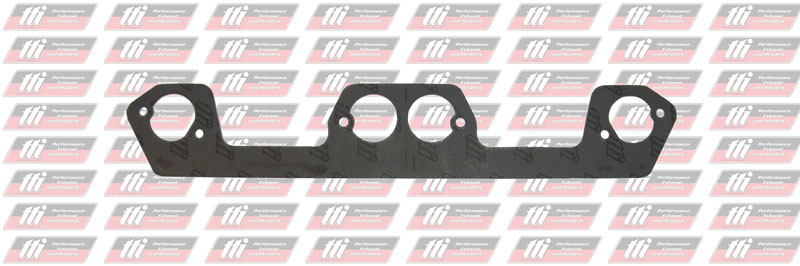

Part No:  GA-HG340W2

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340W2

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

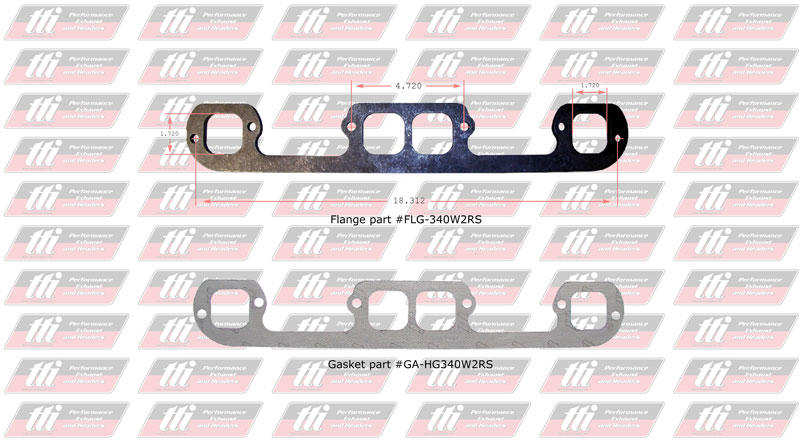

MOPAR W2

GASKET

FLANGE



Part No:  GA-HG340W2RS

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340W2RS

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

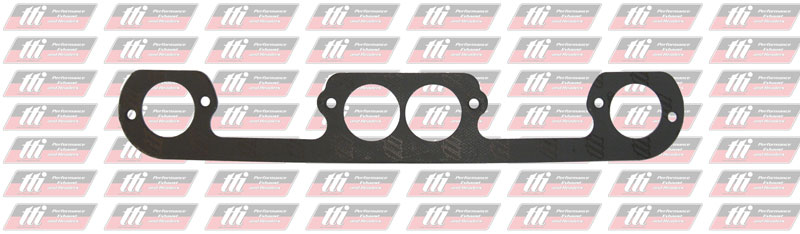

MOPAR W2

GASKET

FLANGE
  • W2 race heads

  • Engine size:  340, 360

  • Round-ports

  • For use with discontinued header no:  340W2-178

  • 1-7/8" x 3" collector headers discontinued prior to 2006



Part No:  GA-HG340W2R

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340W2R

N/A - Discontinued

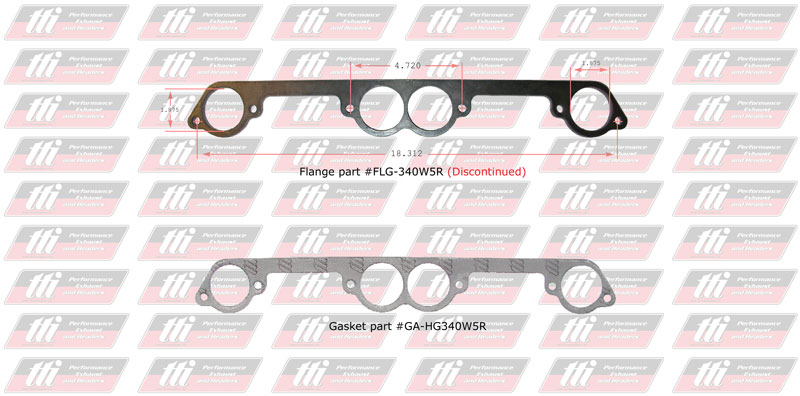

MOPAR W5

GASKET

FLANGE
  • W5 race heads

  • Engine size:  340, 360

  • Round-ports

  • For use with discontinued header no:  340W5-17835

  • 1-7/8" x 3.5" collector headers discontinued prior to April 2015



Part No:  GA-HG340W5R

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340W5R

N/A - Discontinued

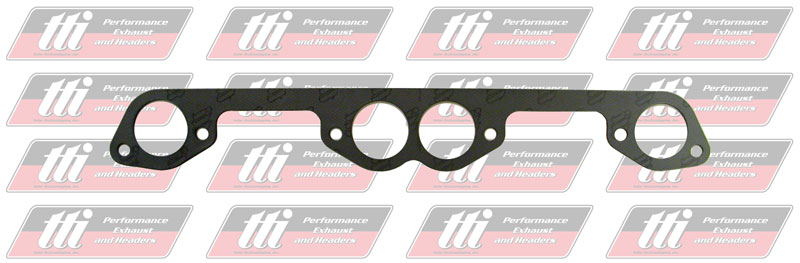

EDELBROCK VICTOR PRO-PORT 6170



GASKET



FLANGE

  • Cylinder head:  Edelbrock Victor Pro-port 6170

  • Engine size:  340, 360, 408ci, 440ci

  • For use with header no:  360W5ED

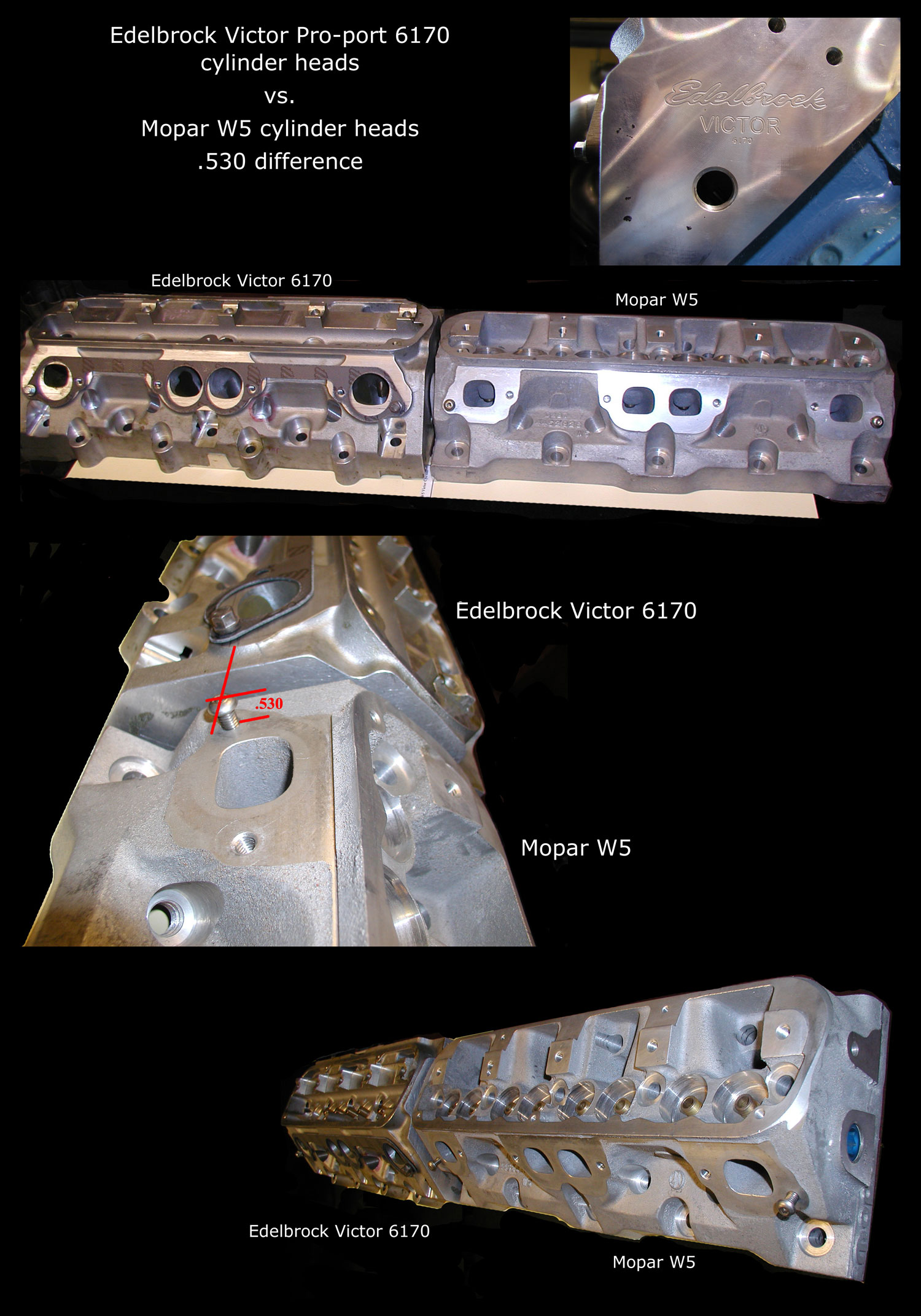

  • (!) Does not match Mopar W5 style cylinder head ports.  Click here to view dimension difference between the Edelbrock Victor pro-port 6170 head vs. a Mopar W5 head.



Part No:  GA-HG340W5ED

$ 25.00 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-340W5ED

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.





BIG BLOCK                    BIG BLOCK                    BIG BLOCK



B/RB-ENGINES



GASKET



FLANGE

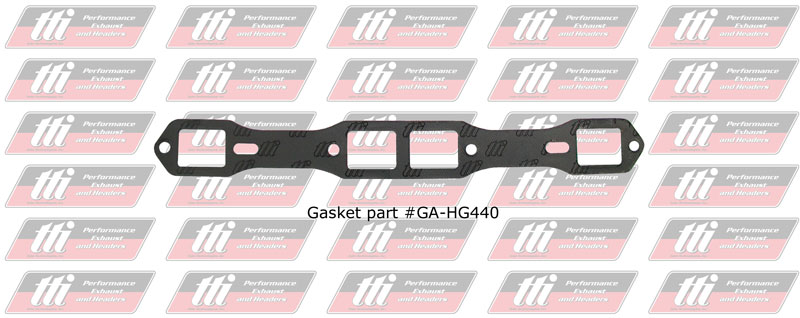

Part No:  GA-HG440

$ 27.40 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-440

$ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

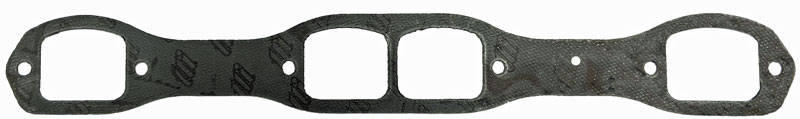

INDY-572-13



GASKET



FLANGE

  • Cylinder head:  Indy-572-13

  • Engine size:  440

  • Port size:  2.100w x 1.650h

  • For use with header no's:  440214MC



Part No:  GA-HG440G1222

$ 30.80 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-440G1222

$ 38.60 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.





HEMIS                      HEMIS                         HEMIS



GEN2 HEMIS



GASKET



FLANGE

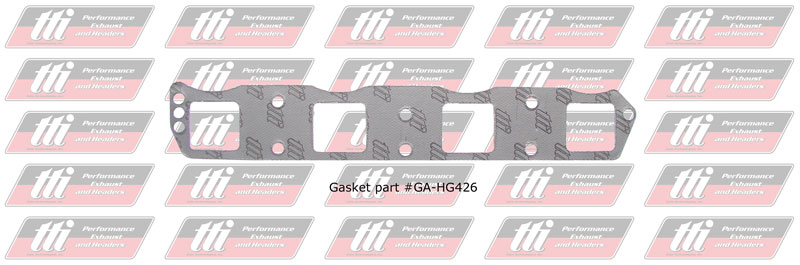

Part No:  GA-HG426

$ 27.40 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-426

$ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.



STAGE-V RAISED-PORT



GASKET



FLANGE

  • Engine size:  426, 472, 528 crate hemis

  • Cylinder head:  Stage-5 raised-port

  • Port size:  2.000w x 1.900h

  • For use with header no's:  STG5-214



Identifying Stage-5

raised-port / low-port

cylinder heads...

Click here

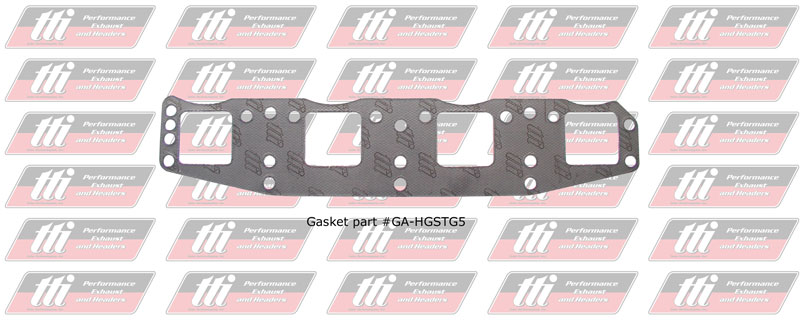

Part No:  GA-HGSTG5

$ 30.80 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-STG5

$ 38.60 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

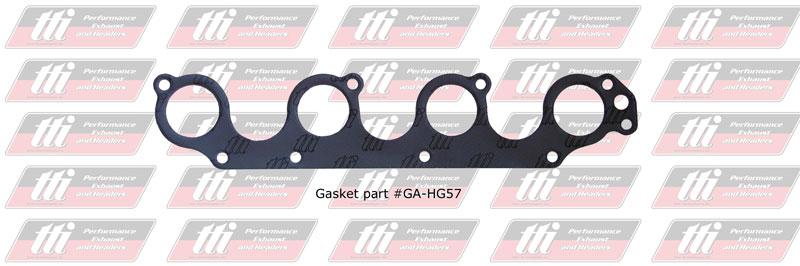

5.7 GEN3 HEMI



GASKET



FLANGE

  • Engine size:  5.7L

  • Round-ports

  • Passenger-side with extra port for EGR valve

  • For use with old style 62-76 Mopar Classic header #57HC, purchased prior to design change made in November 2013.



Part No:  GA-HG57

$ 27.40 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-57

Discontinued



5.7, 6.1 GEN3 HEMI



GASKET



FLANGE

  • Engine size:  5.7L, 6.1L

  • Rectangle-ports:  1.880w x 1.380h

  • Passenger-side with extra port for EGR valve

  • For use with 62-76 Mopar Classic headers:  57HC

  • For use with 05-16 Late Model headers:  57H178

  • For use with 03-08 Ram Truck headers:  TTi35, TTi67, TTi7M

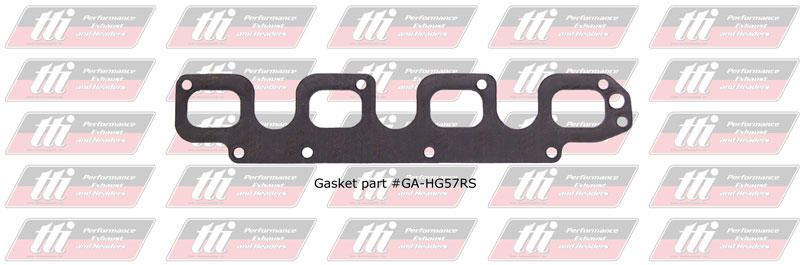

Part No:  GA-HG57RS

$ 13.70 each

Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.

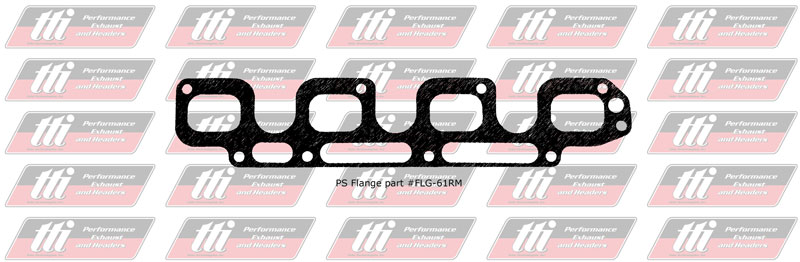

Part No:  FLG-61RM   $ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Lightened steel, 3/8" thick.



5.7, 6.1 GEN3 HEMI



GASKET



FLANGE

  • Engine size:  5.7L, 6.1L

  • Rectangle-ports:  1.880w x 1.380h

  • Set includes:  (1) Passenger-side gasket #GA-HG57RS & (1) Drivers-side gasket #GA-HG61

  • Passenger-side with extra port for EGR valve

  • For use with 62-76 Mopar Classic headers:  57HC

  • For use with 05-16 Late Model headers:  57H178

  • For use with 03-08 Ram Truck headers:  TTi35, TTi67, TTi7M

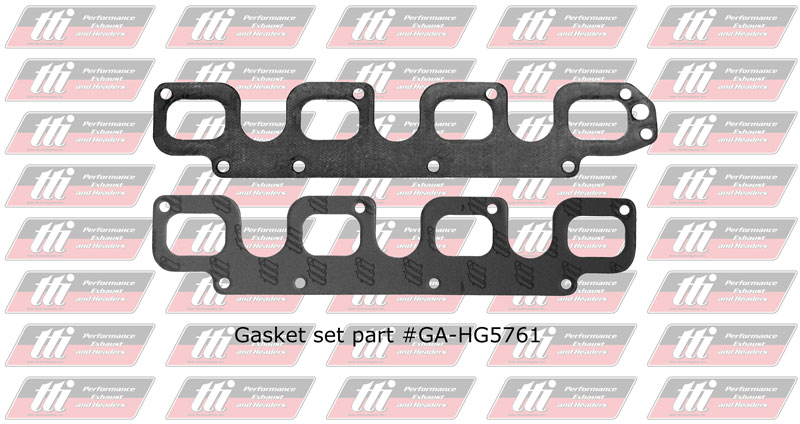

Part No:  GA-HG5761

$ 27.40 set

Qty:  Sold as a set (2 pcs.*)

*(1) GA-HG57RS + (1) GA-HG61

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-61RM   $ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Lightened steel, 3/8" thick.

Part No:  FLG-61   $ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Light-weight steel, 3/8" thick.

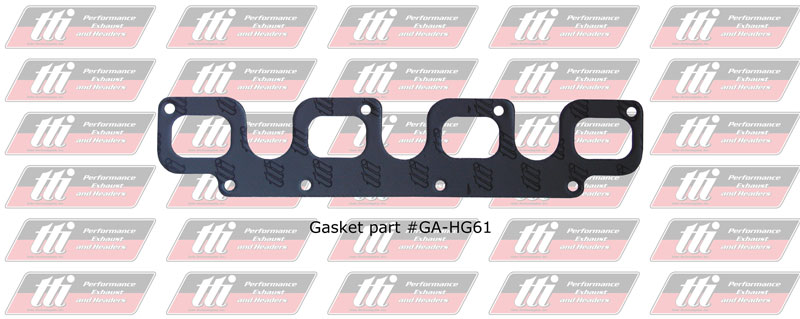

5.7, 6.1 GEN3 HEMI



GASKET



FLANGE



Part No:  GA-HG61

$ 27.40 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.

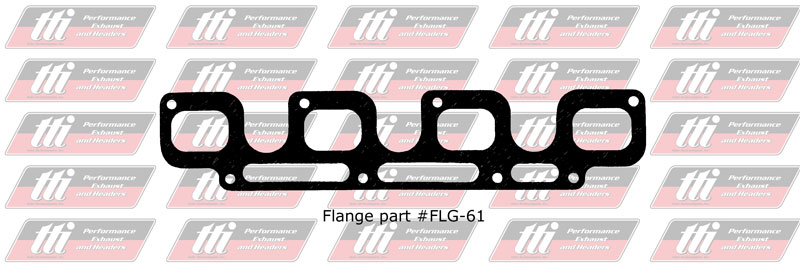

Part No:  FLG-61   $ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Lightened steel, 3/8" thick.



6.1, 6.4 GEN3 HEMI



GASKET



FLANGE

  • Engine size:  6.1L, 392 6.4L

  • Semi-Round ports:  2.075" x 1.920

  • For use with 62-76 Mopar Classic headers:  64L-R1, 64LHCA



Part No:  GA-HG64

$ 27.40 set

Qty:  Sold as a set (2 pcs.)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-64

$ 30.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.



NEON                         NEON                         NEON



SOHC



GASKET



FLANGE

  • Engine size:  2.0L, SOHC

  • Round ports:  2.0"

  • For use with 94-05 Neon headers:  NH100S, NH300S

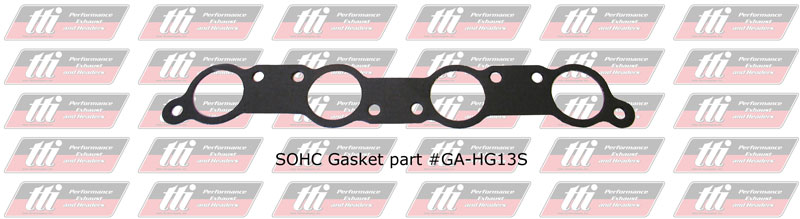

Part No:  GA-HG13S

$ 11.60 each

Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-SOHC

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.





DOHC



GASKET



FLANGE

  • Engine size:  2.0L, DOHC

  • Round ports:  2.0"

  • For use with 94-05 Neon headers:  NH100D, NH300D

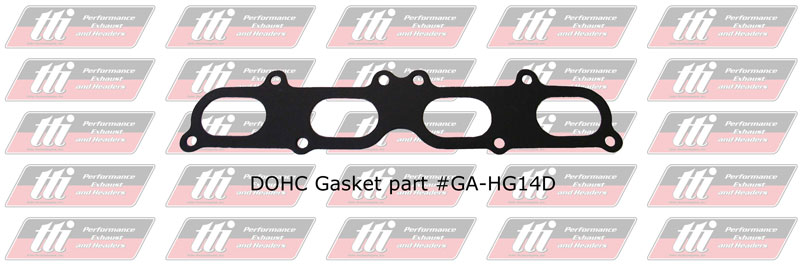

Part No:  GA-HG14D

$ 11.60 each

Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-DOHC

$ 27.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick.

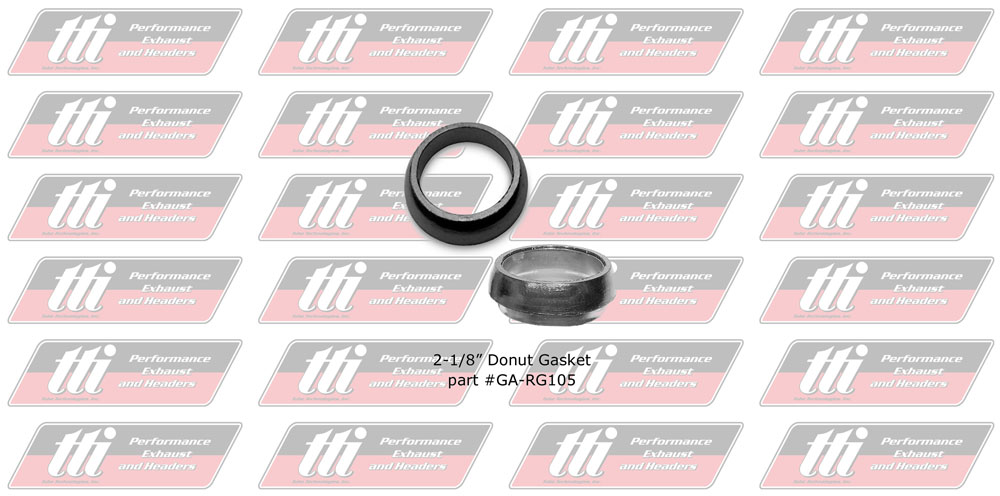

2, 3, 4-BOLT & DONUT                         2, 3, 4-BOLT & DONUT



2-BOLT



GASKET



FLANGE

  • LP Manifold Exhaust-pipe Gaskets & Flanges

  • 2-bolt, 2.25" I.D. hole



Part No:  GA-EP225

$ 3.00 each

Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Part No:  FLG-EP225

$ 14.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 1/2" thick, Flat-flange.

  • HP Manifold Exhaust-pipe Gaskets & Flanges

  • 2-bolt, 2.50" I.D. hole



Part No:  GA-EP250

$ 3.00 each

Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.

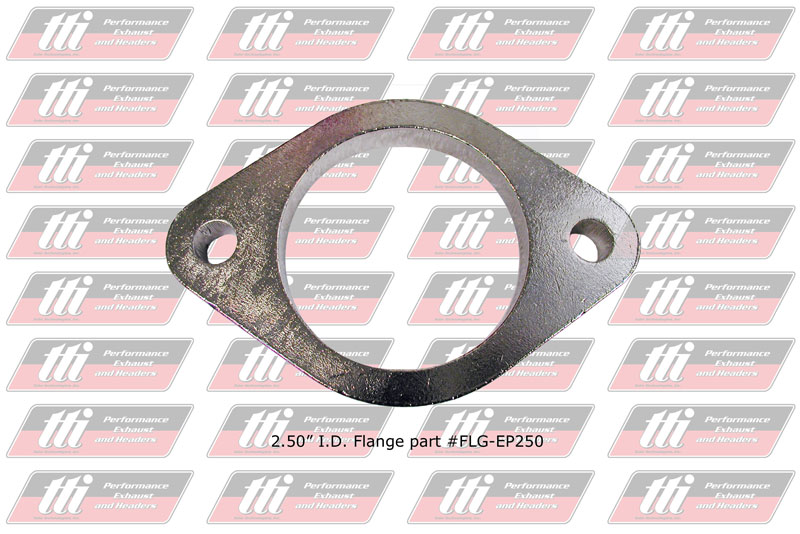

Part No:  FLG-EP250

$ 14.30 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 1/2" thick, Flat-flange.

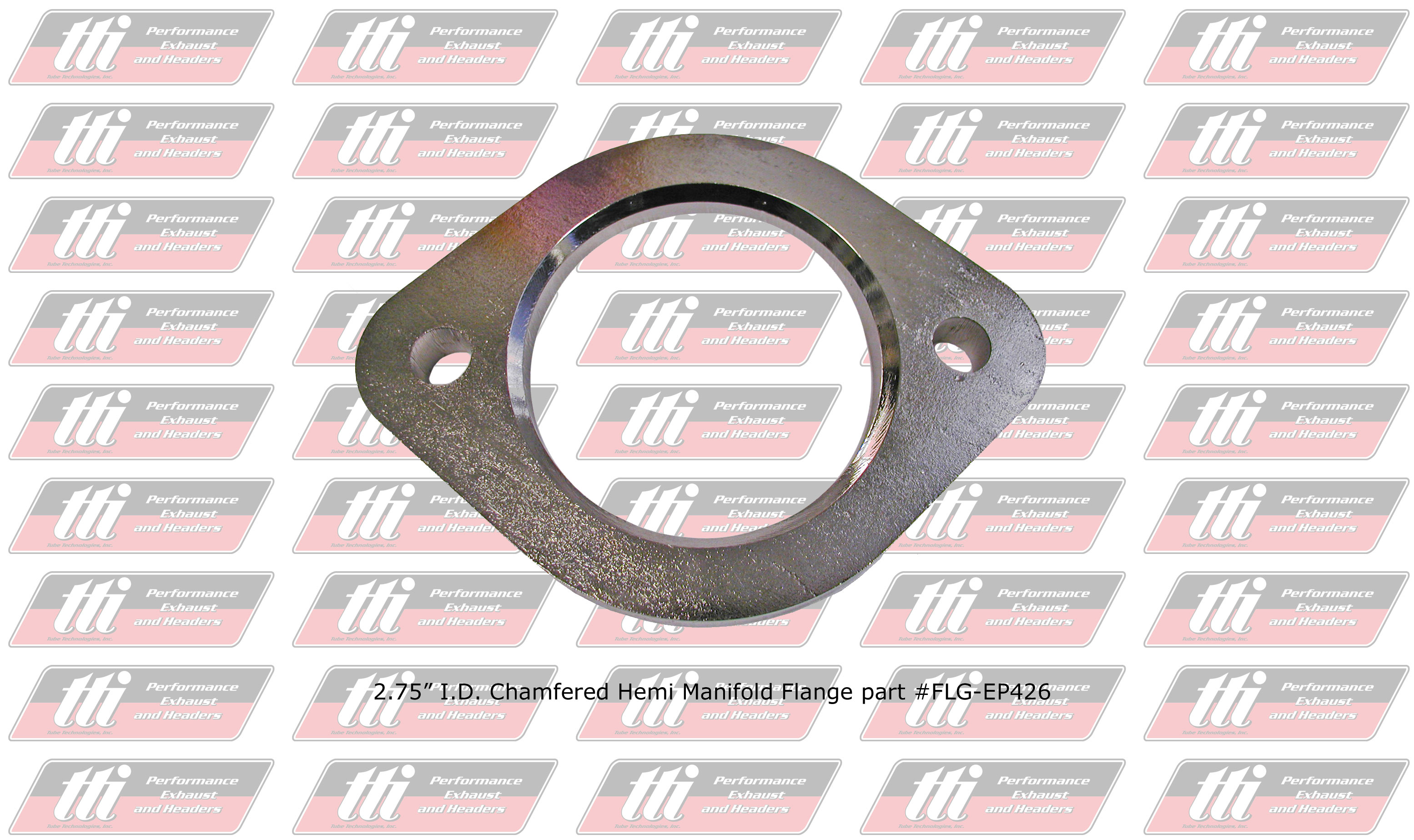

  • Hemi Exhaust-pipe Flange

  • 2-bolt, Chamfered 2.75" I.D. hole



Part No:  N/A

N/A



Part No:  FLG-EP426

$ 14.80 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 1/2" thick, Flat-flange.

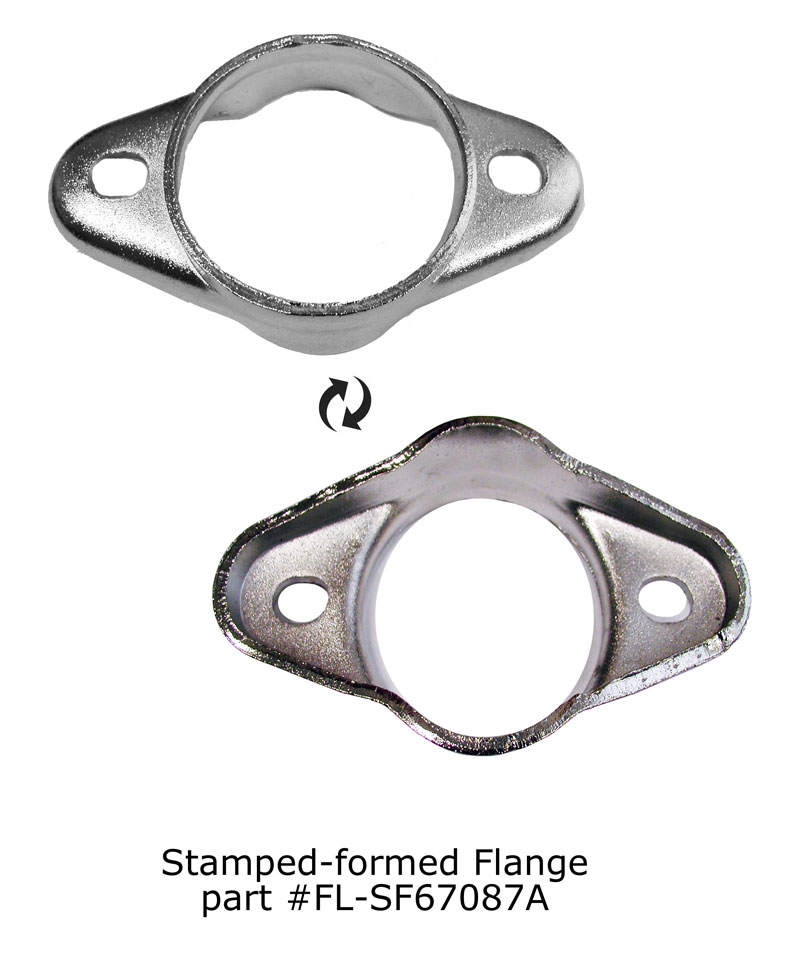

  • Ball & socket style Exhaust-pipe Flange

  • 2-bolt, Stamped formed, 2.52" I.D. hole



Part No:  N/A

N/A



Part No:  FL-SF67087A

$ 6.90 each

Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 1/16" thick.



3-BOLT



GASKET



FLANGE

  • Header collector / Reducer adapter Gaskets & Flanges



Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.





Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 3/8" thick, Flat-flange.

  • 3-bolt, flat, 2.50" I.D. hole



Part No:  GA-RG25     $ 3.50 each



Part No:  FLG-CF25     $ 6.90 each

  • 3-bolt, flat, 3.00" I.D. hole



Part No:  GA-RG30     $ 4.10 each



Part No:  FLG-CF30     $ 9.10 each

  • 3-bolt, flat, 3.00" chamfered I.D. hole



Part No:  N/A



Part No:  FLG-RED30     $ 17.30 each

[chamfered flange]

  • 3-bolt, flat, 3.50" I.D. hole



Part No:  GA-RG35     $ 4.60 each



Part No:  FLG-CF35     $ 11.40 each

  • 3-bolt, flat, 4.00" I.D. hole



Part No:  GA-RG40     $ 6.30 each



Part No:  FLG-CF40     $ 13.70 each



4-BOLT



GASKET



FLANGE

  • Max-wedge style Gasket & Flange

  • 4-bolt, flat, 3.00" I.D. hole



Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite, 1/16" thick.



Qty:  Sold as 1 piece (1 flange)

Flange Material:  Steel, 1/2" thick.





Part No:  GA-MW30     $ 3.50 each



Part No:  FLG-MW4     $ 18.20 each

  • Max-wedge style Blocking Plate

  • 4-bolt, flat







Qty:  Sold as 1 piece (1 blocking plate)

Material:  Steel, 1/2" thick.

Part No:  FLG-MW4BP     $ 14.30 each



DONUT



GASKET



FLANGE

  • Donut gasket, 2-1/8" I.D. hole

  • For use with 94-05 Neon headers/adapters



Qty:  Sold as 1 piece (1 gasket)

Gasket Material:  HTX-900 metal core composite.







Part No:  GA-RG105     $ 20.40 each



Part No:  N/A



Page updated: September 21, 2020





•  About Us

•  Coating Options

•  Mopar Body Style ID

TUBE TECHNOLOGIES, INC.

TTi Performance Exhaust & Headers

1555 Consumer Circle

Corona, CA 92878-3226

Phone: (951) 371-4878   Fax: (951) 371-6143

Mon-Fri, 8am-4pm PST

•  Contact Us

•  Product Maintenance & Care

•  Mopar Related Websites

•  Ordering Information

•  Limited Warranty

•  Media / Published Articles

•  Shipping Rates

•  Illustration & Installation Instructions



•  Authorized Distributors

•  FAQs

Designed and maintained by Tube Technologies, Inc.
