Home <...  NEON HEADERS & EXHAUST SYSTEMS

95-05 NEONS

2.0L

NEON PERFORMANCE HEADERS & EXHAUST SYSTEMS





1-5/8" HEADERS SINGLE OVERHEAD CAM

1-5/8" HEADERS DUAL OVERHEAD CAM







2.5" EXHAUST SYSTEMS

ACCESSORIES, COMPONENT & REPLACEMENT PARTS



"The Grape"

97 Neon ACR

"The Banana"

98 Neon ACR

"The Penguin"

96 Neon ACR











PERFORMANCE HEADERS

Our headers have proven to increase horsepower and torque, plus increases passing power!

Heavy-duty materials are used to construct headers for the ultimate in durability and longevity.

Systems are mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow.  The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes.

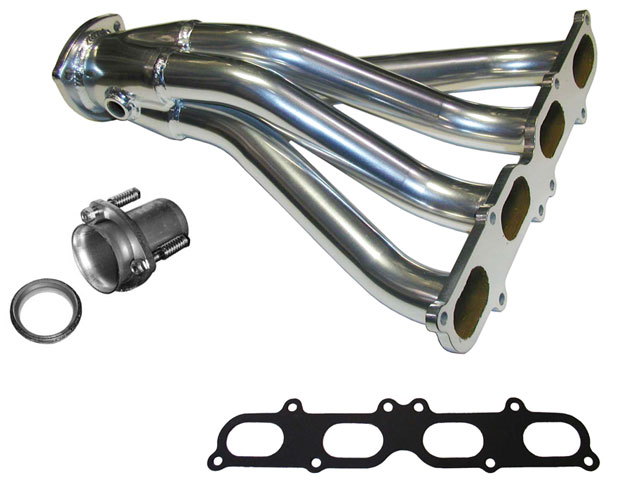

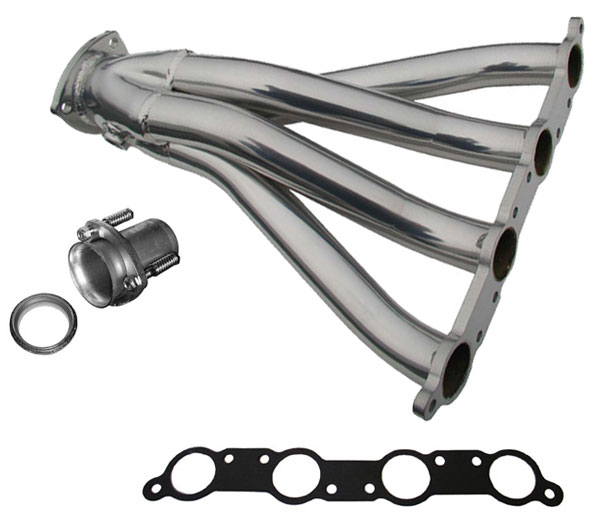

SHORT TUBE HEADERS

  SOHC



 DOHC

  • 1-5/8" OD x 2.5" Collector

  • Collector equipped with O2 sensor bung, ready to accept sensing equipment.

  • One piece header tubes, no slip tubes.

  • Constructed of 16 gauge mild steel tubing.

  • 3/8" thick laser-cut header & collector flanges, contoured for a leak free fit.

  • Direct bolt-on fit, no welding required.

  • Includes Header Gasket, 4-5/16" Exhaust System Adapter #NAD37, Donut Gasket, (3) Socket Bolts, Springs & Lock Nuts.

  • (!) Mounting bolts not included.  Use the stock mounting bolts to secure the header.

HEADER FINISH / COATING OPTIONS

SOHC PART NO'S

[Click on suffix for finish description]

DOHC PART NO'S

[Click on suffix for finish description]



Raw Steel (Un-coated)

NH100S-C0

NH100D-C0

$ 198.00

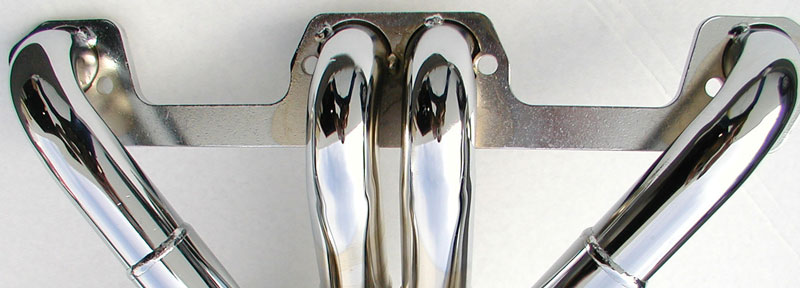

Exterior Nickel-Chrome Plated

NH100S-C1

NH100D-C1

$ 250.00

Exterior Ceramic Coated

NH100S-C2

NH100D-C2

$ 295.00

Exterior Polished Ceramic Coated

NH100S-C3

NH100D-C3

$ 306.00

Ceramic Coated with a Thermal Barrier

NH100S-C4

NH100D-C4

$ 341.00

Polished Ceramic Coated with a Thermal Barrier

NH100S-C5

NH100D-C5

$ 353.00

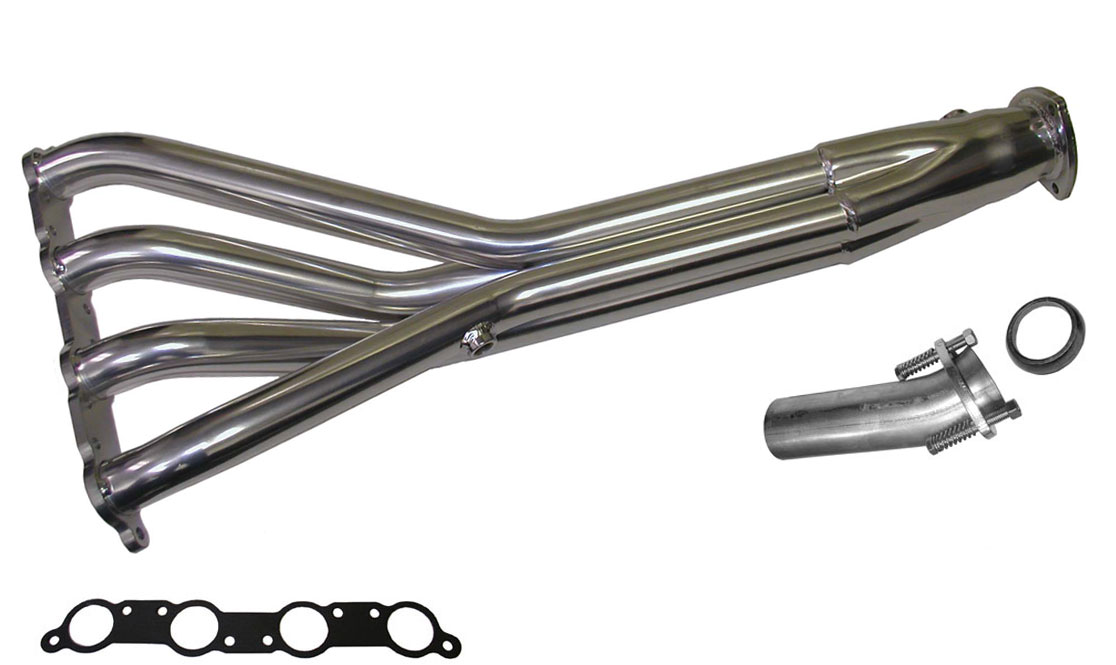

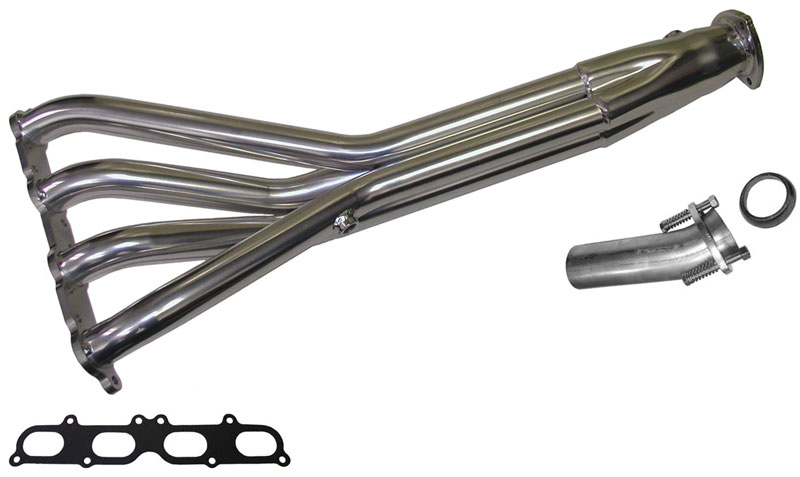

LONG TUBE HEADERS

  • 1-5/8" OD x 2.5" Collector

  • Collector equipped with O2 sensor bung, ready to accept sensing equipment.

  • One piece header tubes, no slip tubes.

  • Constructed of 16 gauge mild steel tubing.

  • 3/8" thick laser-cut header & collector flanges, contoured for a leak free fit.

  • Direct bolt-on fit, no welding required.

  • Includes Header Gasket, 9" Exhaust System Adapter #NAD38, Donut Gasket, (3) Socket Bolts, Springs & Lock Nuts.

  • (!) Mounting bolts not included.  Use the stock mounting bolts to secure the header.

SOHC



DOHC

HEADER FINISH / COATING OPTIONS

SOHC PART NO'S

[Click on suffix for finish description]

DOHC PART NO'S

[Click on suffix for finish description]



Raw Steel (Un-coated)

NH300S-C0

NH300D-C0

$ 233.00

Exterior Nickel-Chrome Plated

NH300S-C1

NH300D-C1

$ 320.00

Exterior Ceramic Coated

NH300S-C2

NH300D-C2

$ 331.00

Exterior Polished Ceramic Coated

NH300S-C3

NH300D-C3

$ 347.00

Ceramic Coated with a Thermal Barrier

NH300S-C4

NH300D-C4

$ 377.00

Polished Ceramic Coated with a Thermal Barrier

NH300S-C5

NH300D-C5

$ 389.00

Prices do not include Shipping, Handling or California Sales Tax, if applicable.

Prices subject to change without notice.







EXHAUST SYSTEMS

Our exhaust systems are constructed of 16 gauge aluminized tubing to resist heat and corrosion damage.  Fabricated in-house using sophisticated CNC machinery and mandrel bent for precise fit and uninterrupted exhaust flow.

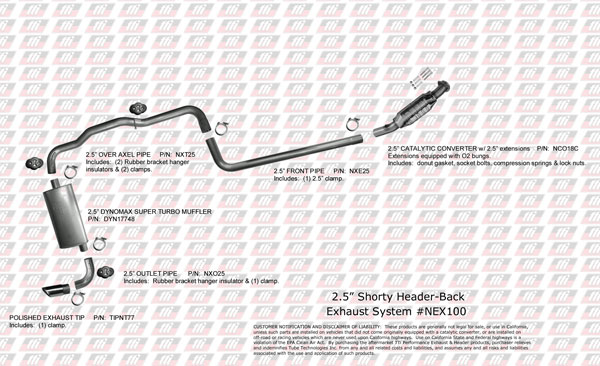

2.5" SHORTY HEADER-BACK EXHAUST SYSTEM

  • 6-Section Exhaust System:  Catalytic Converter w/ Extensions, Front-pipe, Over-Axle pipe with welded hanger brackets, Dynomax Super Turbo Muffler, Outlet-pipe with welded hanger bracket & Round Rolled-edge Polished Exhaust Tip.

  • Catalytic Converter w/ Extensions equipped with O2 sensor bungs.

  • System includes (5) Band clamps, (3) Rubber bracket hanger insulators, (3) Socket bolts, Compression springs & Lock nuts.

  • Made of 16 gauge aluminized tubing, mandrel bent.

  • Direct bolt-on fit, no welding required.

  • (!) Prerequisite:  Short Tube Header.

 Part No:  NEX100   $ 612.95





Customer Notification and Disclaimer of Liability:  These products are generally not legal for sale, or use in California, unless such parts are installed on vehicles that did not come originally equipped with a catalytic converter, or are installed on off-road or racing vehicles which are never used upon California highways.  Use on California State and Federal highways is a violation of the EPA Clean Air Act.  By purchasing the aftermarket TTi Performance Exhaust & Header products, purchaser relieves and indemnifies Tube Technologies Inc. from any and all related costs and liabilities, and assumes any and all risks and liabilities associated with the use and application of such products.

Prices do not include Shipping, Handling or California Sales Tax, if applicable.

Prices subject to change without notice.

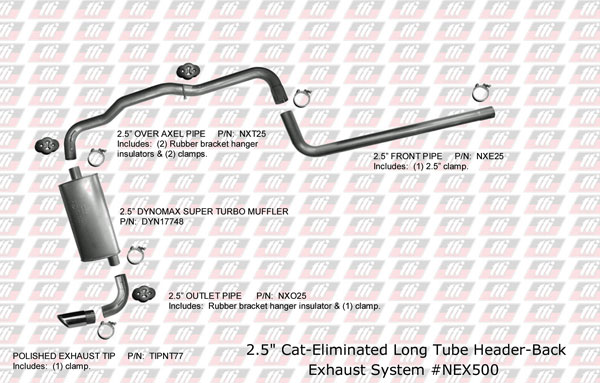

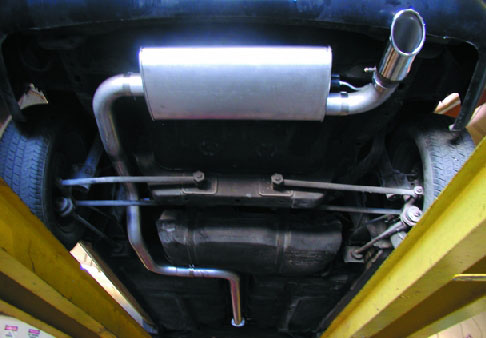

2.5" CAT-ELIMINATED LONG TUBE HEADER-BACK EXHAUST SYSTEM

  • 5-Section Exhaust System:  Front-pipe, Over-Axle pipe with welded hanger brackets, Dynomax Super Turbo Muffler, Outlet-pipe with welded hanger bracket & Round Rolled-edge Polished Exhaust Tip.

  • System includes (5) Band clamps & (3) Rubber bracket hanger insulators.

  • Made of 16 gauge aluminized tubing, mandrel bent.

  • Direct bolt-on fit, no welding required.

  • (!) Prerequisite:  Long Tube Header.

Part No:  NEX500   $ 355.95



Prices do not include Shipping, Handling or California Sales Tax, if applicable.

Prices subject to change without notice.







ACCESSORIES, COMPONENT & REPLACEMENT PARTS





SHORT TUBE HEADER ADAPTER

4-5/16" long.  Includes donut gasket, socket bolts, compression springs & lock nuts.

Part No:

NAD37

 $ 50.80 ea.





LONG TUBE HEADER ADAPTER

9" long.  Includes donut gasket, socket bolts, compression springs & lock nuts.

Part No:

NAD38

 $ 50.80 ea.









SOHC HEADER GASKET & FLANGE

Gasket Part No:

GA-HG13S

1/16" SOHC header gasket

$ 11.60  ea.

Flange Part No:

FLG-SOHC

3/8" SOHC header flange

$ 27.30  ea.



DOHC HEADER GASKET & FLANGE

Gasket Part No:

GA-HG14D

1/16" DOHC header gasket

$ 11.60  ea.

Flange Part No:

FLG-DOHC

3/8" DOHC header flange

$ 27.30  ea.



2-1/8" DONUT GASKET

Part No:

GA-RG105

$ 20.40  ea.

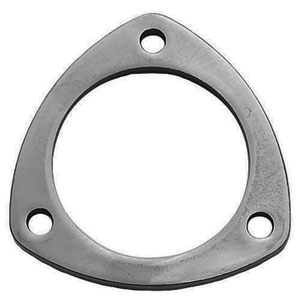

COLLECTOR FLANGE

Part No:

FLG-CF25

2.5" I.D. Header collector flange

$ 6.90  ea.

Part No:

FLG-NAD25

2.5" I.D. Chamfered flange

$ 15.00  ea.

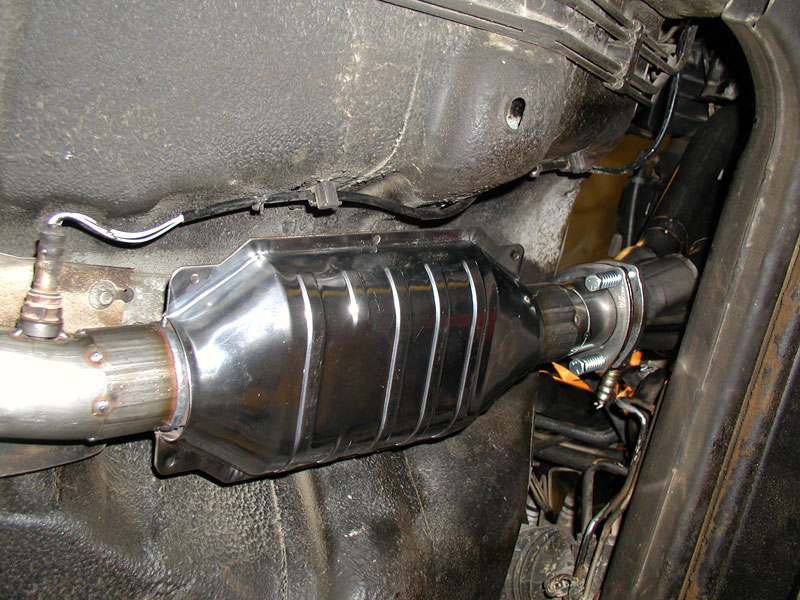

CATALYTIC CONVERTER

MagnaFlow Cat 445006 with 2.5" extension pipes.  Extensions equipped with O2 sensor bungs.

Includes donut gasket, socket bolts, compression springs & lock nuts.

Part No:

NCO18C

 $ 291.45





L-SHAPE FRONT-PIPE

Includes band clamps.

Part No:

NXE25

 $ 61.55





OVER-AXLE PIPE

Includes band clamp.

Part No:

NXT25

 $ 148.05





2.5" DYNOMAX SUPER TURBO MUFFLER

9.75"W x 4.25"H x20.0"L, 25.5" Overall length.

Part No:

DYN17748

 $ 70.70





OUTLET-PIPE ELBOW

Includes a hanger bracket welded onto elbow & a rubber hanger bracket insulator.

Part No:

NXO25

 $ 31.45





POLISHED EXHAUST TIP

Rolled-edge, slip-on design.  2.5" O.D. inlet x 3.0" I.D. x 9.5" long.  Includes band clamp.

Part No:

TIPNT77

$ 92.55 ea.

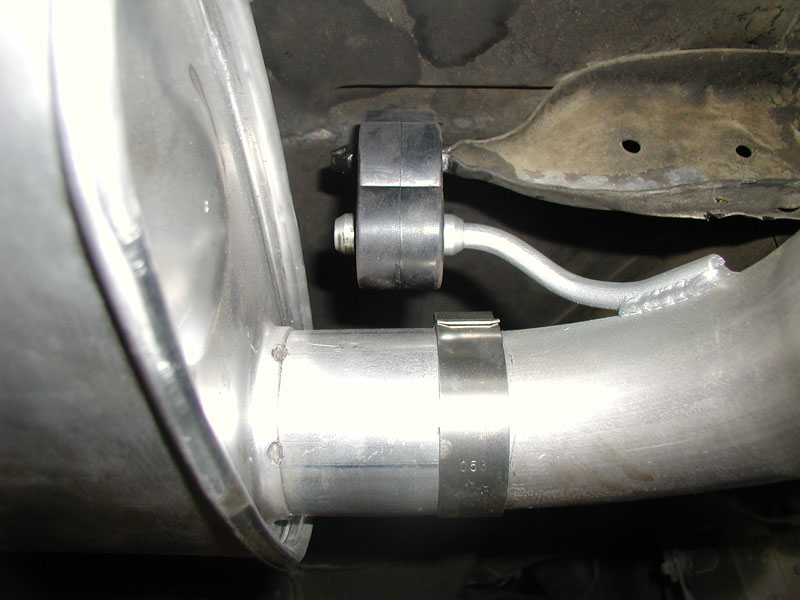

RUBBER BRACKET HANGER INSULATORS

Part No:

BR92155

 $ 10.25 ea.





2.5" 304SS BAND CLAMP

Part No:

CL-TB25

 $ 6.65 ea.





BALL & SOCKET HEADER ADAPTER HARDWARE

3/8-16 x 3.0" socket bolt, compression spring & lock nut

Part No:

KBO38SN

 $ 2.45 ea.









FRONT MOTOR MOUNT

Solid steel, Black powder-coated.

Part No:

NMM71

 $ 92.05 ea.





SOHC COLD AIR INTAKE SYSTEM

Includes Air filter, Air intake tube, Heat-resistant hose sleeve, 2.5" band clamp & 3/4" hose clamp.

Part No's:

NA600-PO Polished aluminum $ 141.95 ea.


NA600-BK

Black powder-coated aluminum

$ 141.95 ea.



SOHC COLD AIR INTAKE TUBE

Includes Heat-resistant hose sleeve, 2.5" band clamp & 3/4" hose clamp.

Part No's:

NA659-PO Polished aluminum $ 98.95 ea.


NA659-BK

Black powder-coated aluminum

$ 98.95 ea.



INTAKE AIR FILTER REPLACEMENT

A universal, high-flowing air filter for cold air intake installation on a round pipe.  2.5" ID Inlet, 9" Overall length, Round tapered shape.  5-1/8" top diameter x  5-3/4" bottom diameter.

Part No:

AF25X9R

 $ 45.75 ea.





HEAT-RESISTANT HOSE SLEEVE

2.5" ID x 3.0" L x 4-ply Nomex @ 0.70" wall

Part No's:

NA655-BK

 Black

$ 11.15 ea.



NA655-BL

 Blue

$ 11.15 ea.



NA655-RD

 Red

$ 11.15 ea.

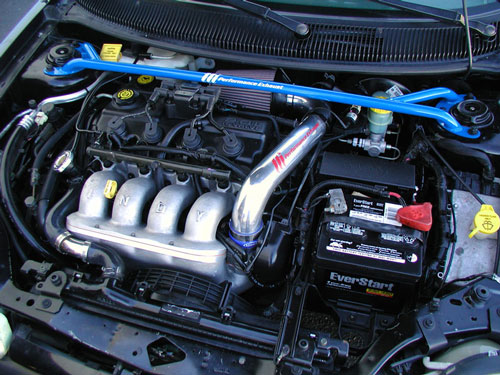

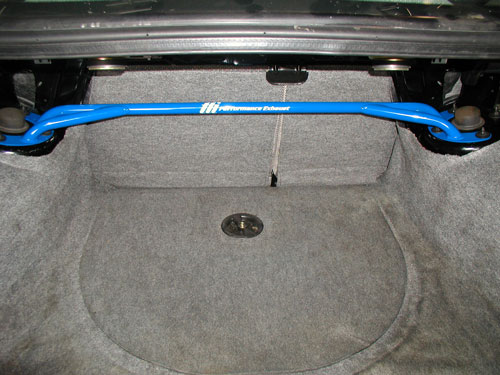

STRUT BARS

Increases stiffness and reduces body rolling during cornering.



Part No's:

NB40-BK

 Front, Black powder-coated

$ 80.55 ea.



NB40-BL

 Front, Blue powder-coated

$ 80.55 ea.



NB40-RD

 Front, Red powder-coated

$ 80.55 ea.



Part No's:

NB42-BK

 Rear, Black powder-coated

$ 80.55 ea.



NB42-BL

 Rear, Blue powder-coated

$ 80.55 ea.



NB42-RD

 Rear, Red powder-coated

$ 80.55 ea.
