• Header Material: Constructed of 16 gauge mild steel tubing. Mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow. The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes.

HEADER FITMENT

PART NO'S & PRICING

INSTALLATION INSTRUCTIONS

COMPONENT, ACCESSORIES & REPLACEMENT PARTS

SPECIAL-ORDER OPTIONS: OXYGEN SENSOR BUNGS, EVAC or EGT FITTINGS

HEADER FITMENT
• Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations. However, we have done our best to accommodate both factory and aftermarket component combinations. In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

1. Platform:

67-76 A-BODY
• Hemi blocks with 440-RB mount ears will require modification to the casting on the driver-side. Approximately 3/8” of the material must be removed to clear the header tube and a fabricated steel mount will be required

2. Engine Size:

426 HEMI, 472-CRATE, 528-CRATE (We do not make any headers for the Early 392 Hemi blocks)
• Headers fit with Schumacher Creative Services engine mounts or equivalent (OEM)
• (!) Required hemi engine location to accommodate headers (See illustration sheet #211 for measurements)

3. Cylinder Heads:

OEM, EDELBROCK, STAGE 5 (Low-port), INDY-426SR

4. Front Suspension:

STOCK or EQUIVALENT, retaining torsion bars
Steering Linkage:
• UniSteer Performance Rack and Pinion: Headers will not clear.

• Firm Feel Inc Fast Ratio Pitman & Idler Arm: Headers will not clear. The FFI arm is 3/4" longer than the stock arm. The OEM arm measures 5-1/4" from center to center.

5. Auto Trans:

YES
• Floor Shift: Some applications with an auto transmission may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector (See illustration sheet #3703)
• Keisler Auto Trans: Applications using the Keisler Auto Trans with the 5/8" spacer must use a PowerMaster XS Torque starter 9523.

6. Standard Trans:

YES
• Clutch Linkage / 67-76 A-body applications: A modified Z-bar will be required, sold separately part #ZB307.
• Keisler/Tremec TKO-500/600 Transmissions: It is imperative that the output-end of the tail shaft is in exactly the same position as the stock transmission output shaft for the headers to fit properly.

7. Floor Shift:

YES
• Auto Trans: Some applications with an auto transmission may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector (See illustration sheet #3703)

8. Column Shift:

NO
• DIY alternative: Modify your shift linkage to achieve clearance. TTi does not make a linkage to satisfy this situation.

9. Push Button:

N/A

10. Manual Steering:

YES

11. Power Steering:

NO
• Will not clear Borgeson power-steering

12. Air Conditioning:

YES

13. Starters:

THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES...
• Chrysler part no's: R53005984, 56027702AC
• Mopar Performance part no's: P5249644AB, P5007860, P4286522
• PowerMaster Performance XS torque starter no: 9523
(!) Keisler Auto Trans: Applications using the Keisler Auto Trans with the 5/8" spacer must use a PowerMaster XS Torque starter 9523

14. Bellhousing:

ALL
• Lakewood Bellhousing scatter shield: Modification is required to the passenger-side bell-housing. A half moon shaped notch will need to be ground down approximately 1/4" deep to clear the header tube.

15. Oil Filters:

OEM or Remote Mount

16. Oil Pans:

OEM & MILODON
• Milodon street & strip part no's: 31010, 30930, 30931
• Milodon road race part no's: 31580, 31581

17. Oil Dipstick:

(!) OEM dipstick tube will not clear header.
• DIY alternative: Reshape your stock dipstick tube, see illustration sheet #502
• Milodon offers a flexible dipstick & tube - Milodon item #22070

PART NO'S & PRICING

• Click here for coating option details, header maintenance, and warranty information.

• Header sets include: Header gaskets, header bolts (12), and header reducer adapters to transition to an exhaust system.

(!) Exhaust system size required when ordering.

• Prices do not include Shipping, Handling or California Sales Tax, if applicable. Prices subject to change without notice.

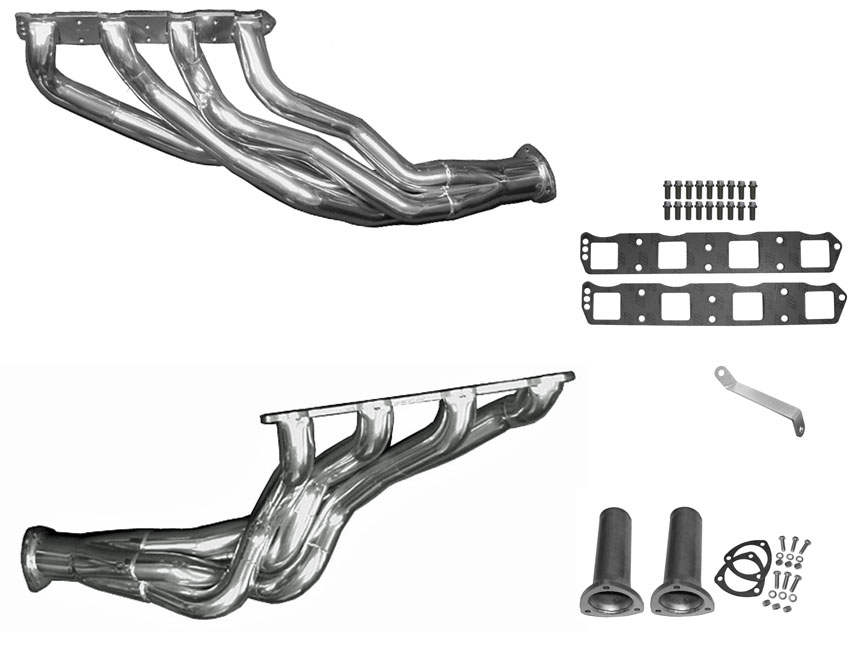

HEADER FINISH	2-1/4" RACE HEMI HEADERS w/ 3.5" collectors	PART NUMBER	PRICE
	C0: RAW MILD STEEL • Bare metal • Very susceptible to rust	# TTi HEMI218AC0	$ 977.00 /set
	C4: CERAMIC COATED • Silver satin (matte) exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)	# TTi HEMI218AC4	$ 1158.00 /set
	C5: POLISHED CERAMIC COATED • Polished silver exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)	# TTi HEMI218AC5	$ 1194.00 /set

Updated: January 31, 2024

Coupled with a TTi Exhaust System, these headers become even more efficient! ...Click here

INSTALLATION INSTRUCTIONS

Required hemi engine location to accommodate headers,

see illustration sheet #211 for measurements

TOP OF PAGE

COMPONENTS & REPLACEMENT PARTS

PART DESCRIPTION

PART NUMBER

PRICE

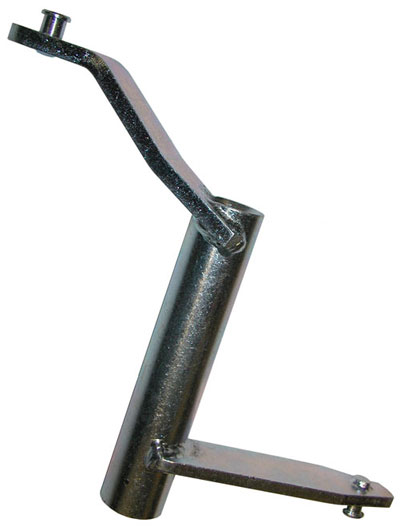

Z-BAR for 67-76 A-body applications with STANDARD TRANS

Modified design Z-bar. See illustration sheet #307ZB

For use with TTi Header No's: 383440-134, 440-200, 400SR-218, HEMI625-218, HEMI625-214, HEMI218A

(!) TTi does not make a modified Z-bar for all header/vehicle application combinations.

# ZB307

$ 133.50 each

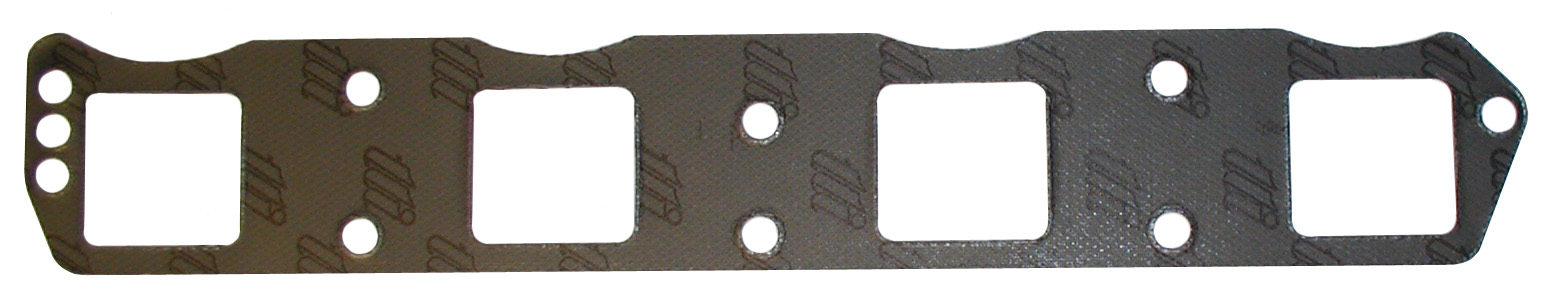

HEMI HEADER GASKETS

HTX-900 gasket: A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core. more info...

Port size: 2" X 1.900"

Recommendation: Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

Note: (2) Supplied with header purchase.

# GA-HG426

$ 31.90 /set

HEADER BOLTS

3/8-16x1 GR5 zinc plated.

Note: (12) Supplied with header purchase.

# BO38

$ .94 each

3.5" 3-BOLT COLLECTOR GASKET

Recommendation: Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

Note: (2) Supplied with header purchase.

# GA-RG35

$5.37 each

DIPSTICK TUBE BRACKET

3/4" x 12ga mild steel

Note: (1) Supplied with header purchase.

# 5004-3

$ 13.44 each

HEADER REDUCER ADAPTERS to transition headers to an exhaust system. Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & hardware. Note: (1 set) Supplied with header purchase. Size required when ordering.
3.5" x 2.5" x 6" long reducers	# RED35X25X6	$ 66.50 /set
3.5" x 3.0" x 6" long adapters	# RED35X30X6	$ 70.00 /set
3.5" x 3.5" x 6" long adapters	# RED35X35X6	$ 74.00 /set

TOP OF PAGE

ADDITIONAL OPTIONS

• Evacuation tubes and EGT probe fittings can be installed prior to coating headers. Installation of these options are considered a "Special-Order". Please allow an additional 3-4 weeks for the special order work and the coating process.

• Special-Order Deposit Required: TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order. The balance will be due upon completion.

DESCRIPTION	PART NUMBER	PRICE
O2 SENSOR BUNGS + INSTALLATION Steel fitting, 18mm threads, installed in the header collectors or reducer adapters. Installation locations: Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.
Installed in Header Collectors ...	# MISC-02COL	$ 117.38 /set
Installed in Drivers-side Header Collectors ...	# MISC-02COL-DS	$ 68.69 each
Installed in Reducer/Adapters ...	# MISC-02RED	$ 117.38 /set
Installed in Drivers-side Reducer/Adapters ...	# MISC-02RED-DS	$ 68.69 each


EVACUATION TUBE + INSTALLATION • Evacuation tubes will be installed in the reducers or adapters • Drivers-side installed in the 9 o'clock location • Passenger-side installed in the 3 o'clock location
Evacuation tube installed in the header collectors ...	# SP005-COL	$ 126.40 /set
Evacuation tube installed in the header reducer adapters ...	# SP005-RED	$ 126.40 /set

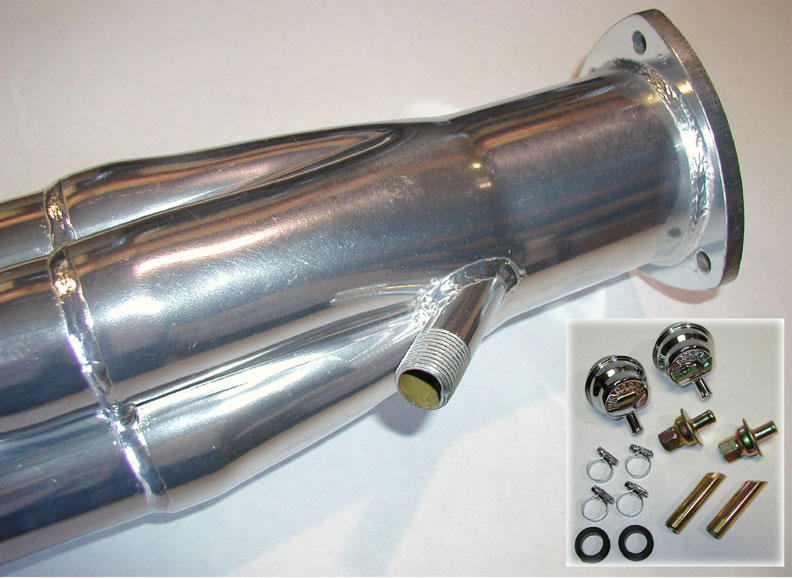

CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION

• Allstar Performance Crankcase Evacuation System: 2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes

• The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters

• Drivers-side installed in the 9 o'clock location

• Passenger-side installed in the 3 o'clock location

# KIT-EV34145

$ 152.20

Kit + Tube Installation

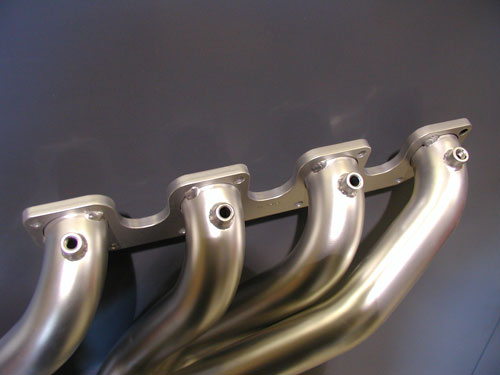

EGT PROBE FITTING + INSTALLATION

• 304SS exhaust gas temperature fitting, 1/8" pipe, internal thread

• Typical installed 1" from the header flange

• (!) Specify which cylinder tubes when ordering.

# MISC-EGT1	1st fitting $ 97.26
# MISC-EGT2	2nd fitting $ 114.30
# MISC-EGT3	3rd fitting $ 131.70
# MISC-EGT4	4th fitting $ 149.08
# MISC-EGT5	5th fitting $ 166.46
# MISC-EGT6	6th fitting $ 183.83
# MISC-EGT7	7th fitting $ 201.21
# MISC-EGT8	8th fitting $ 218.59
