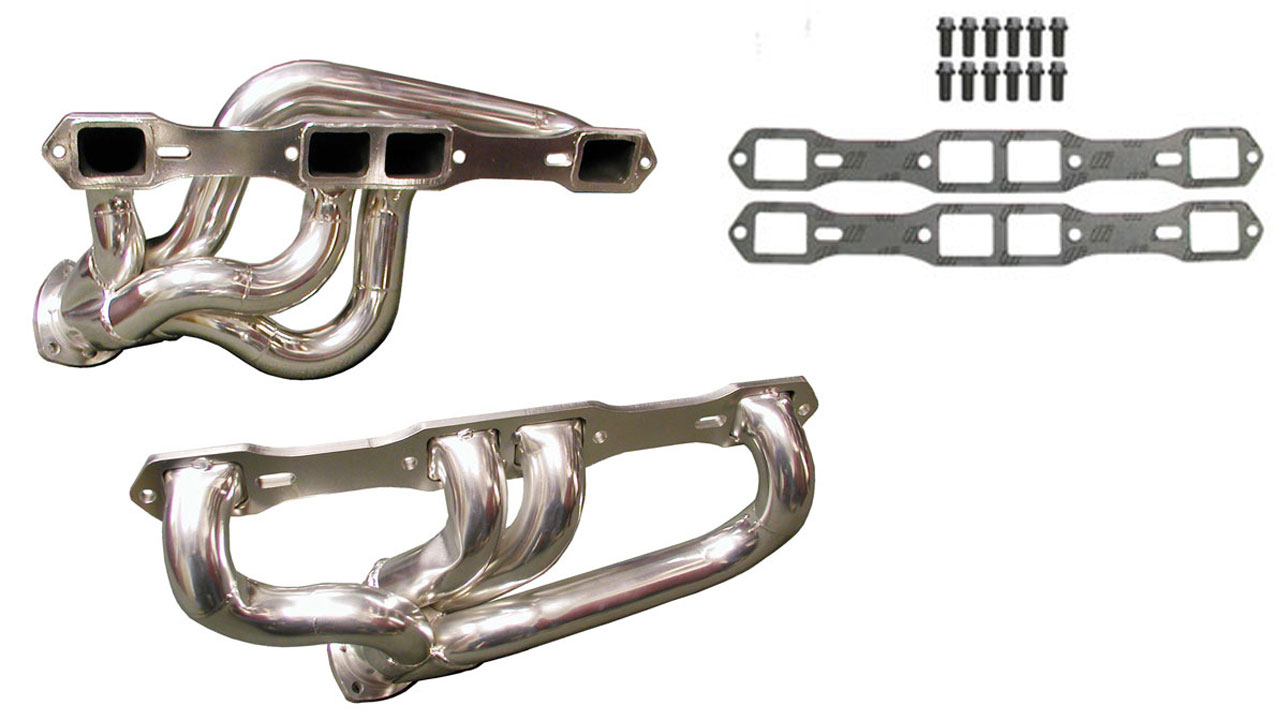

HEADER FITMENT • Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions) • Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation. 1.  PLATFORM: 67-76 A-BODY, 66-74 B-BODY and 70-74 E-BODY CHASSIS 2.  ENGINES: 383-400 B-ENGINES & 440 RB-ENGINES • Headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation. 3.  CYLINDER HEADS: OEM or EQUIVALENT - FACTORY 915, 906, 452, BULLDOG, EDELBROCK E-STREET, EDELBROCK PERFORMER RPM, INDY-EZ, STAGE 5, TRICK FLOW, 440-SOURCE • Cylinder Head Studs:  Head studs may be used on the Passenger-side, however, on the Drivers-side the header tubes will not clear the cylinder head studs below the #3, #5 and #7 cylinders.  We recommend ARP bolts for clearance in these areas. 4.  SPARK PLUGS: STRAIGHT or ANGLED Headers are designed with adequate plug clearance for angled plugs. 5.  FRONT SUSPENSION: OEM or EQUIVALENT with torsion bars COILOVER without torsion bars:  The following coilover systems have been fit-checked with these headers and found there to be no clearance issues...  RMS Alterktion, Magnumforce Tubular, Magnumforce Modular Transformer, Control Freak • Steering Linkage:  OEM with torsion bars or Rack & Pinion without torsion bars • 67-76 A-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies only.  Headers will fit B & E body applications with Quick/Fast Ratio arms.) • UniSteer Performance Rack and Pinion:  Headers will not clear 6.  ENGINE MOUNTS: OEM • Headers fit with Schumacher Creative Services engine mounts or equivalent. 7.  AUTO TRANS: YES  8.  STANDARD TRANS: YES • 11.0" Flywheel (143-tooth ring gear) / 383-400 B-engines:  NO, headers will not clear. • 11.0" Flywheel (143-tooth ring gear) / 440-RB engines:  YES, headers will clear, however, you must use a RobbMc Performance starter #3005. • Keisler Tremec TKO-500/600 Transmission:  Correct installation is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly. • Clutch Linkage:  OEM 9.  CLUTCH FLYWHEEL: • 10.5" Flywheel (130-tooth ring gear):  YES, headers will clear. • 11.0" Flywheel (143-tooth ring gear) / 383-400 B-engines:  NO, headers will not clear. • 11.0" Flywheel (143-tooth ring gear) / 440-RB engines:  YES, headers will clear, however, you must use a RobbMc Performance starter #3005. 10.  FLOOR SHIFT: YES 11.  COLUMN SHIFT: ? 12.  PUSH BUTTON: YES 13.  STEERING: YES, POWER-STEERING or MANUAL STEERING 14. AIR CONDITIONING: YES   15.  STARTERS: THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES... • 383-400 B-engine:  Auto/Standard Trans with a 10.5" (130-tooth) Flywheel, must use a RobbMc Perf Starter #3005 • 440-RB engine:  Auto Trans, must use a RobbMc Perf starter #3005 or PowerMaster XS Torque starters:  9523 • 440-RB engine:  Standard Trans, must use a RobbMc Perf starter #3005 16.  BELL HOUSING: ALL 17.  OIL FILTERS: OEM 18.  OIL PANS: ALL 19.  VALVE COVERS: OEM, CAST ALUMINUM, STAMPED STEEL   TOP OF PAGE     PART NO'S & PRICING •  Click here for coating option details, header maintenance, and warranty information. •  Header sets include:  Header gaskets, header bolts (12), and header reducer adapters to transition to an exhaust system.    (!) Exhaust system size required when ordering. •  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice. HEADER FINISH 1-3/4" BIG BLOCK "SHORTY" HEADERS PART NO. PRICE C0:  RAW MILD STEEL • Bare metal • Very susceptible to rust TTi 44025-C0 $ 668.00 /set C2:  CERAMIC COATED • Silver satin (matte) exterior TTi 44025-C2 $ 787.00 /set C4:  CERAMIC COATED • Silver satin (matte) exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º) TTi 44025-C4 $ 849.00 /set C5:  POLISHED CERAMIC COATED • Polished silver exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º) TTi 44025-C5 $ 885.00 /set   Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here     INSTALLATION INSTRUCTIONS   SHORTY HEADERS + ADAPTER PIPES   SHORTY HEADER ADAPTER PIPES Required to transition headers to an exhaust system (Sold separately) INSTALLATION INSTRUCTIONS   TOP OF PAGE     COMPONENTS, ACCESSORIES & REPLACEMENT PARTS   DESCRIPTION PART NO. PRICE SHORTY HEADER ADAPTER PIPES Required to transition Exhaust system to Headers. 2-1/2" O.D. tubes with 2-1/2" 3-bolt flanges, 16 gauge aluminized tubing, mandrel bent, 3/8" thick laser-cut 3-bolt flanges, sets include 1/16" 3-bolt gaskets and hardware       A/B/E-body, 383, Auto/Standard Trans # AD-T25383 $ 135.99 /set   A-body, 440, Auto Trans # AD-T340440AC $ 135.99 /set   A-body, 440, Standard Trans # AD-T340440AS $ 135.99 /set   B/E-body, 440, Auto Trans # AD-T25340440 $ 135.99 /set   B/E-body, 440, Standard Trans # AD-T340440BES $ 135.99 /set     HEADER GASKETS  HTX-900 gasket material:  A high density non-asbestos fiber metal core composite consisting of graphite coated, hi-temperature facing material chemically and mechanically fused to an expanded steel core. A proven hi-performance exhaust gasket composite used extensively within the automotive racing industry, where characteristics such as structural strength and hi-temp load retention are required to withstand severe under-the-hood operating environments. Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket. Note:  (2) Supplied with header purchase. Note:  (2) Supplied with header purchase. # GA-HG440 $ 31.90 /set     HEADER BOLTS 3/8-16x1 GR5 zinc plated. Note:  (12) Supplied with header purchase. # BO38 $ .94 each     2.5" 3-BOLT COLLECTOR GASKET     HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core. Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket. Note:  (2) Supplied with header purchase. # GA-RG25 $ 4.09 each   TOP OF PAGE

ADDITIONAL OPTIONS •  Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.

DESCRIPTION PART NO. PRICE O2 SENSOR BUNGS + INSTALLATION Steel fitting, 18mm threads, installed in the header collectors or reducer adapters. Installation locations:  Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.       Installed in Reducer/Adapters # MISC-02RED $ 117.38 /set   Installed in Drivers-side Reducer/Adapters # MISC-02RED-DS $ 68.69 each
