1.  PLATFORM:

67-76 A-BODY, 62-79 B-BODY, 70-74 E-BODY, 76-80 F-BODY and 77-88 M-BODY

2.  A/LA ENGINES:

STANDARD-PORT:  273, 318, 340, 360, 402 crate, 408 MAGNUM CRATE, 440 SUPER COMMANDO CRATE

EARLY FACTORY SMALL-PORT:  273*, 318* (Modification required for proper seal)

• Early factory small-port head:  Port diameter 1.09w x 1.55h

• Standard-port head:  Port diameter 1.30w x 1.80h

*Special-Order:  Additional material will be added to the flange ports for headers to seal properly.  Special-Order lead-time, 6-8 weeks (modification and coating process)

3.  CYLINDER HEADS:

4.  SPARK PLUGS:

STRAIGHT or ANGLED

5.  FRONT SUSPENSION:

OEM or EQUIVALENT with torsion bars

COILOVER without torsion bars:  The following coilover systems have been fit-checked with these headers and found there to be no clearance issues...  RMS Alterktion, Magnumforce Tubular, Magnumforce Modular Transformer, Control Freak

• Steering Linkage:  OEM with torsion bars or Rack & Pinion without torsion bars

• 67-76 A-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies only.  Headers will fit B & E body applications with Quick/Fast Ratio arms.)

• UniSteer Performance Rack and Pinion:  Headers will not clear

6.  ENGINE MOUNTS:

OEM

• Headers fit with Schumacher Creative Services engine mounts or equivalent.

7.  AUTO TRANS:

YES

• Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  (See illustration sheet #3703)

8.  STANDARD TRANS:

YES

• Flywheel:  Applications with an 11" flywheel, 143-tooth ring gear must use a RobbMc Performance starter #3005.

• Clutch Linkage:  OEM   (!) 67-76 A-body applications may require a modified Z-bar.  Modified Z-bar sold separately #ZB340

• Keisler Tremec TKO-500/600 Transmission:  Correct installation is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.

9.  FLOOR SHIFT:

YES

• Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  (See illustration sheet #3703)

10.  COLUMN SHIFT:

YES

• 71-74 B-body & 70-74 E-body applications may require a modified Torque Shaft Assembly.  Torque Shaft Assembly sold separately #B7174TSA

11.  PUSH BUTTON:

YES

12.  STEERING:

YES, POWER-STEERING or MANUAL STEERING

• Borgeson Power-Steering Unit:  Mounting holes may require elongating to allow the steering unit to be moved away from the engine for adequate clearance from the header tubes.  (See illustration sheet #7913)

• 67-76 A-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies only.  Headers will fit B & E body applications with Quick/Fast Ratio arms)

13.  STARTERS:

THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES...

AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)...

• OEM or Mini starters

• Chrysler part no's:  R53005984, 56027702AC

• Mopar Performance part no's:  P5249644AB, P5007860, P4286522

• PowerMaster Performance starter no's:  9513, 9523

STANDARD TRANS with an 11" flywheel (143-tooth ring gear)...

• RobbMc Performance starter:  3005

Note:  Mini starters can easily be changed without removing the header.

14.  BELL HOUSING:

ALL

15.  OIL FILTERS:

SHORT SCREW-ON STYLE OR A 90º ADAPTER CAN BE USED

16.  OIL PANS:

OEM, MILODON or EQUIVALENT

• Milodon part no's:  30935, 30936, 30940, 30941

• Pro Touring pan part no's:  31590 & 31595

17.  VALVE COVERS:

OEM, CAST ALUMINUM, STAMPED STEEL

PART NO'S & PRICING

•  Click here for coating option details, header maintenance, and warranty information.

•  Header sets include:  Header gaskets, header bolts (12), and header reducer adapters to transition to an exhaust system.

   (!) Exhaust system size required when ordering.

•  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice.

HEADER FINISH OPTIONS

C0:  RAW MILD STEEL

• Bare metal

• Very susceptible to rust

C4:  CERAMIC COATED

• Silver satin (matte) exterior

• Thermal barrier coated interior

• Reduces under hood temperature by approximately 50º

C5:  POLISHED CERAMIC COATED

• Polished silver exterior

• Thermal barrier coated interior

• Reduces under hood temperature by approximately 50º

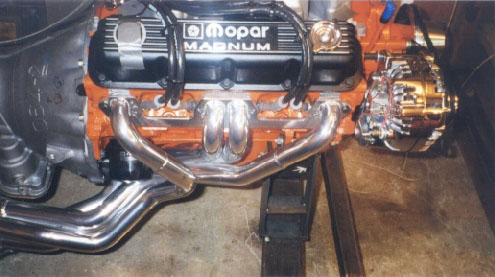

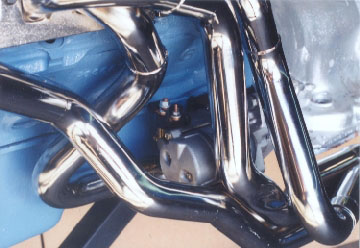

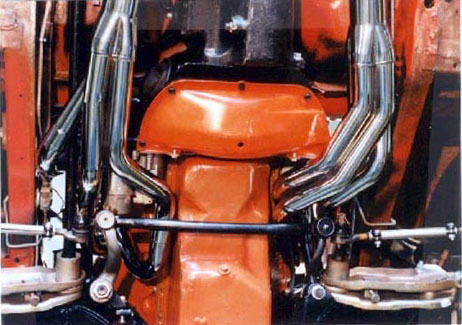

HEADERS FOR 67-76 A-body

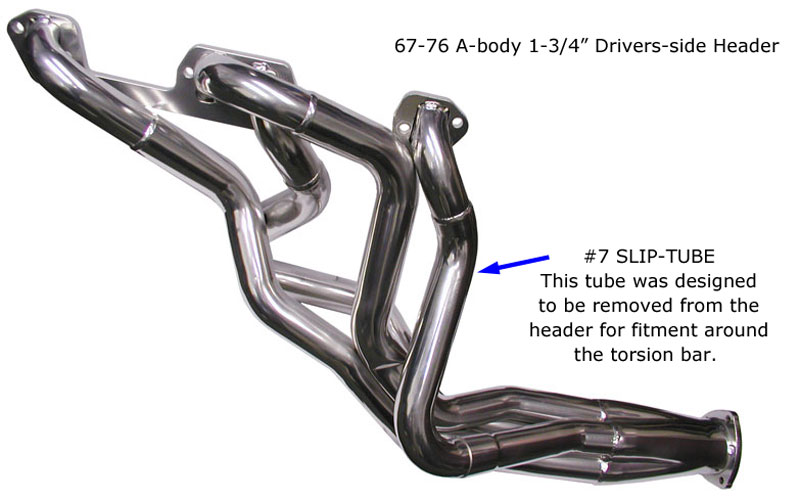

A-body applications with Coilover/Tubular Suspensions (without torsion bars), use header part #TTi340BE. Reason; the driver-side header is one-piece, no slip tube required.

1-5/8 x 1-3/4" STEP HEADERS

with 3.0" collectors

PART NUMBERS

for Standard-port heads

PRICE

SPECIAL-ORDER

PART NUMBERS

for 273-318

Small-Port heads

PRICE

C0:  RAW MILD STEEL

# TTi 340A-C0

$ 803.00 /set

# TTi 340A273-C0*

$ 903.00 /set

C4:  CERAMIC COATED

# TTi 340A-C4

$ 984.00 /set

# TTi 340A273-C4*

$ 1084.00 /set

C5:  POLISHED CERAMIC COATED

# TTi 340A-C5

$ 1020.00 /set

# TTi 340A273-C5*

$ 1120.00 /set

HEADERS FOR 62-79 B-body, 70-74 E-body, 76-80 F-body and 77-88 M-body

1-5/8 x 1-3/4" STEP HEADERS

with 3.0" collectors

PART NUMBERS

for Standard-port heads

PRICE

SPECIAL-ORDER

PART NUMBERS

for 273-318

Small-Port heads

PRICE

C0:  RAW MILD STEEL

# TTi 340BE-C0

$ 803.00 /set

# TTi 340BE273-C0*

$ 903.00 /set

C4:  CERAMIC COATED

# TTi 340BE-C4

$ 984.00 /set

# TTi 340BE273-C4*

$ 1084.00 /set

C5:  POLISHED CERAMIC COATED

# TTi 340BE-C5

$ 1020.00 /set

# TTi 340BE273-C5*

$ 1120.00 /set

*These headers will be modified for the Early Factory 273-318 small-port heads.  Additional material will be added to the flange ports for headers to seal properly.

* Special-Order lead-time 6-8 weeks

* Early factory small-port diameter 1.09w x 1.55h

Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here

INSTALLATION INSTRUCTIONS

A-BODY / STANDARD TRANS APPLICATIONS:  MODIFIED DESIGN Z-BAR

• A modified design Z-bar for 67-76 A-body applications having header clearance issues using the OEM/Stock Z-bar.  (See illustration sheet #340ZB)

• Z-bar available for use with TTi header no: 340A

(!) Not available for all header/vehicle combinations

# ZB340

$ 133.50 each

COLUMN SHIFT APPLICATIONS:  B & E-BODY TORQUE SHAFT ASSEMBLY

Due to various manufacturing designs of the column shift linkage in some 71-74 B-body and 70-74 E-body vehicles, a modified design Torque Shaft Assembly may be required.

A Torque Shaft Assembly is required if the drivers-side stock straight torque shaft rod is mounted below the torsion bar.  The stock straight torque shaft rod passes directly through the space where the header tubes or exhaust pipe to manifolds, must go.

This precision bent assembly with laser-cut ends allows you to maintain your column shift linkage, and is a direct bolt-on replacement of your stock torque shaft rod.  [Illustration sheet B7174TSA .pdf]

727 Transmission

# B7174TSA-7

$ 54.50 each

904 Transmission

# B7174TSA-9

$ 54.50 each

HEADER GASKETS

HTX-900 gasket material:  A high density non-asbestos fiber metal core composite consisting of graphite coated, hi-temperature facing material chemically and mechanically fused to an expanded steel core.

A proven hi-performance exhaust gasket composite used extensively within the automotive racing industry, where characteristics such as structural strength and hi-temp load retention are required to withstand severe under-the-hood operating environments.

Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket.

Note:  (2) Supplied with header purchase.

# GA-HG340

$ 29.85 /set

HEADER BOLTS

5/16"-18x1

Note:  (12) Supplied with header purchase.

# BO516

$ .94 each

3.0" 3-BOLT COLLECTOR GASKET

HTX-900 gasket material:  A high density non-asbestos fiber metal core composite consisting of graphite coated, hi-temperature facing material chemically and mechanically fused to an expanded steel core.

Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket.

Note:  (2) Supplied with header purchase.

# GA-RG30

$ 4.79 each

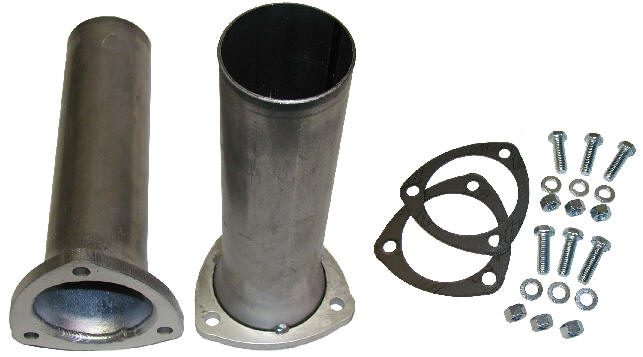

HEADER REDUCER ADAPTERS

Used to transition headers to an exhaust system.

Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & hardware.

Note:  (1 set) Supplied with header purchase.  Size required when ordering.

3.0" x 2.5" x 9" long reducers

# RED30X25X9

$ 57.50 /set

3.0" x 3.0" x 9" long reducers

# RED30X30X9

$ 62.50 /set

DESCRIPTION

PART NUMBER

PRICE

O2 SENSOR BUNGS + INSTALLATION

Steel fitting, 18mm threads, installed in the header collectors or reducer adapters.

Installation locations:  Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.

Installed in Header Collectors ...

# MISC-02COL

$ 117.38 /set

 Installed in Drivers-side Header Collectors ...

# MISC-02COL-DS

$ 68.69 each

 Installed in Reducer/Adapters ...

# MISC-02RED

$ 117.38 /set

 Installed in Drivers-side Reducer/Adapters ...

# MISC-02RED-DS

$ 68.69 each

EVACUATION TUBE + INSTALLATION

•  Evacuation tubes will be installed in the reducers or adapters

•  Drivers-side installed in the 9 o'clock location

•  Passenger-side installed in the 3 o'clock location

Evacuation tube installed in the header collectors ...

Evacuation tube installed in the header reducer adapters ...

# SP005-RED

$ 126.40 /set

CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION

•  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes

•  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters

•  Drivers-side installed in the 9 o'clock location

•  Passenger-side installed in the 3 o'clock location

# KIT-EV34145

$ 152.20

Kit + Tube Installation

EGT PROBE FITTING + INSTALLATION

•  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread

•  Typical installed 1" from the header flange

•  (!) Specify which cylinder tubes when ordering.
