Home <...  SMALL BLOCK HEADER OPTIONS <...  1-7/8" W2 HEADERS

MOPAR CLASSICS

A,B,E,F,M-bodies

W2 1-7/8" HEADERS

*** Headers for dual bolt pattern W2 cylinder heads or single bolt pattern W2 cylinder heads ***

with bolt spread of 4-3/4" from center left bolt-hole to center right bolt-hole.

A-BODY

PART NUMBER:  340AW2-17835

B,E,F,M-BODY

PART NUMBER:  340BEW2-17835





(!) Your cylinder head center bolt hole pattern spread must measure 4-3/4" from the center of the left bolt hole to the center of the right bolt hole for these headers to fit.  Click here for measurement illustration.

HEADER FEATURES

1-7/8" O.D. Tubes

3.5" Collectors

3/8" thick Flanges, laser-cut, contoured for a leak free fit

Under chassis design:  Above the steering center link design offers maximum header to ground clearance

Full length header design:  Proven power gains vs. Shorty design

Recommended Horsepower:  550+

Torsion bar removal not required

Header Material:  Constructed of 16 gauge mild steel tubing.  Mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow. The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes.



HEADER FITMENT

PART NO'S & PRICING

INSTALLATION INSTRUCTIONS

COMPONENT, ACCESSORIES & REPLACEMENT PARTS

SPECIAL-ORDER OPTIONS:  OXYGEN SENSOR BUNGS, EVAC or EGT FITTINGS





HEADER FITMENT

Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions)

 Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

1.  PLATFORM:

67-76 A-BODY, 62-79 B-BODY, 70-74 E-BODY 76-80 F-BODY and 77-88 M-BODY

2.  A/LA ENGINES:

340, 360, 402 CRATE, 408 MAGNUM CRATE, MOPAR 440 SUPER COMMANDO CRATE

3.  CYLINDER HEADS:

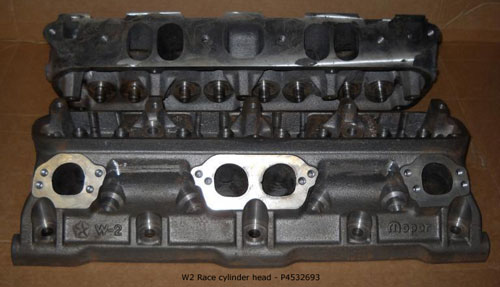

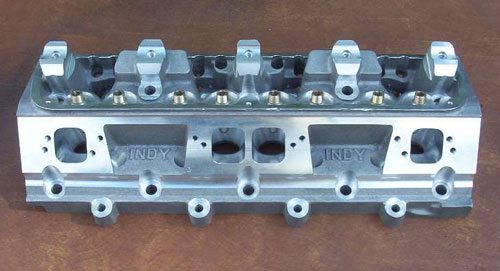

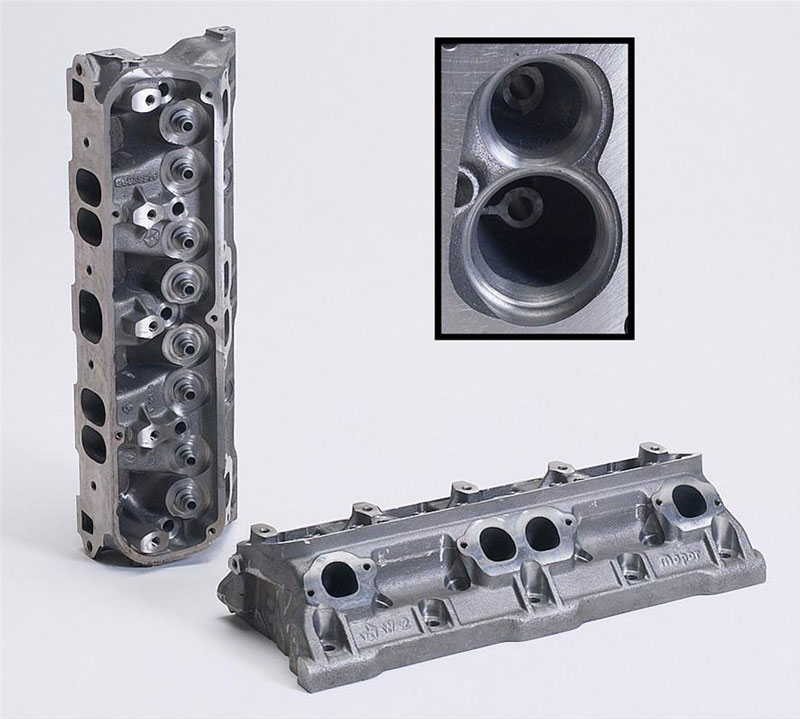

INDY-360-1, INDY-360-2, W2 RACE HEADS P4532693, MOPAR PERFORMANCE W2 CAST IRON RACE HEADS 5249769

(!) Your cylinder head center bolt hole pattern spread must measure 4-3/4" from the center of the left bolt hole to the center of the right bolt hole for these headers to fit.  Click here for measurement illustration.

4.  SPARK PLUGS:

STRAIGHT or ANGLED

Headers designed with adequate plug clearance for angled plugs

5.  FRONT SUSPENSION:

OEM or EQUIVALENT with torsion bars

COILOVER without torsion bars:  The following coilover systems have been fit-checked with these headers and found there to be no clearance issues...  RMS Alterktion, Magnumforce Tubular, Magnumforce Modular Transformer, Control Freak

 Steering Linkage:  OEM with torsion bars or Rack & Pinion without torsion bars.

 67-76 A-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies only.  Headers will fit B & E body applications with Quick/Fast Ratio arms.)

 Headers will not clear UniSteer Performance Rack and Pinion.

6.  ENGINE MOUNTS:

OEM

 Headers fit with Schumacher Creative Services engine mounts or equivalent.

7.  AUTO TRANS:

YES

 Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration sheet #3703

8.  STANDARD TRANS:

YES

 Flywheel:  Applications with an 11" flywheel, 143-tooth ring gear must use a RobbMc Performance starter #3005.

Clutch Linkage:  OEM   (!) 67-76 A-body applications may require a modified Z-bar.  [Modified Z-bar sold separately #ZB340]

Keisler Tremec TKO-500/600 Transmission:  Correct installation is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.

9.  FLOOR SHIFT:

YES

 Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration sheet #3703

10.  COLUMN SHIFT:

A-BODY applications:  (!) NO, will not clear column shift.

B, E, F & M-BODY:  YES

71-74 B-body & 70-74 E-body applications may require a modified Torque Shaft Assembly.  Sold separately #B7174TSA

11.  PUSH BUTTON:

YES

12.  STEERING:

YES, POWER-STEERING or MANUAL STEERING

Borgeson Power-Steering Unit:  Mounting holes may require elongating to allow the steering unit to be moved away from the engine for adequate clearance from the header tubes.  See illustration sheet #7913

 67-76 A-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies only.  Headers will fit B & E body applications with Quick/Fast Ratio arms)

13.  STARTERS:

THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES...

AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)...

OEM or MINI STARTERS

Chrysler part no's:  R53005984, 56027702AC

Mopar Performance part no's:  P5249644AB, P5007860, P4286522

PowerMaster Performance starter no's:  9513, 9523 (Catalog pg. 30)

STANDARD TRANS with an 11" flywheel (143-tooth ring gear)...

RobbMc Performance starter:  3005

Note:  Mini starters can easily be changed without removing the header.

14.  BELL HOUSING:

ALL

15.  OIL FILTERS:

SHORT SCREW-ON STYLE OR A 90 ADAPTER CAN BE USED

16.  OIL PANS:

OEM, MILODON or EQUIVALENT

 Milodon part no's:  30935, 30936, 30940, 30941

 Pro Touring pan part no's:  31590 & 31595

17.  VALVE COVERS:

OEM, CAST ALUMINUM, STAMPED STEEL



TOP OF PAGE





PART NO'S & PRICING

  Click here for coating option details, header maintenance, and warranty information.

  Header sets include:  Header gaskets, header bolts (12), and header reducer adapters to transition to an exhaust system.

   (!) Exhaust system size required when ordering.

  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice.

HEADER FINISH

W2 1-7/8" HEADERS with 3.5" collectors

PART NUMBER

PRICE

C0:  RAW MILD STEEL

  Bare metal

  Very susceptible to rust

For 67-76 A-bodies

# TTi 340AW2-17835C0

$ 905.00 /set

For B,E,F,M-bodies

# TTi 340BEW2-17835C0

C4:  CERAMIC COATED

 Silver satin (matte) exterior

 Thermal barrier coated interior

Reduces under hood temperature by approximately 50

For 67-76 A-bodies

# TTi 340AW2-17835C4

$ 1086.00 /set

For B,E,F,M-bodies

# TTi 340BEW2-17835C4

C5:  POLISHED CERAMIC COATED

 Polished silver exterior

 Thermal barrier coated interior

Reduces under hood temperature by approximately 50

For 67-76 A-bodies

# TTi 340AW2-17835C5

$ 1122.00 /set

For B,E,F,M-bodies

# TTi 340BEW2-17835C5

Updated: February 02, 2024

HEADER NOTES

A-body applications with Coilover/Tubular Suspensions (without torsion bars), use header part # TTi 340BEW2

Reason; the driver-side header is one-piece, no slip tube required.

B,E,F,M-bodies:  62-79 B-body, 70-74 E-body, 76-80 F-body, and 77-88 M-bodies

Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here





INSTALLATION INSTRUCTIONS



W2 cylinder head bolt pattern

Your cylinder head center bolt hole pattern spread must measure 4-3/4" from the center of the left bolt hole to the center of the right bolt hole for these headers to fit.  Click here for measurement illustration.

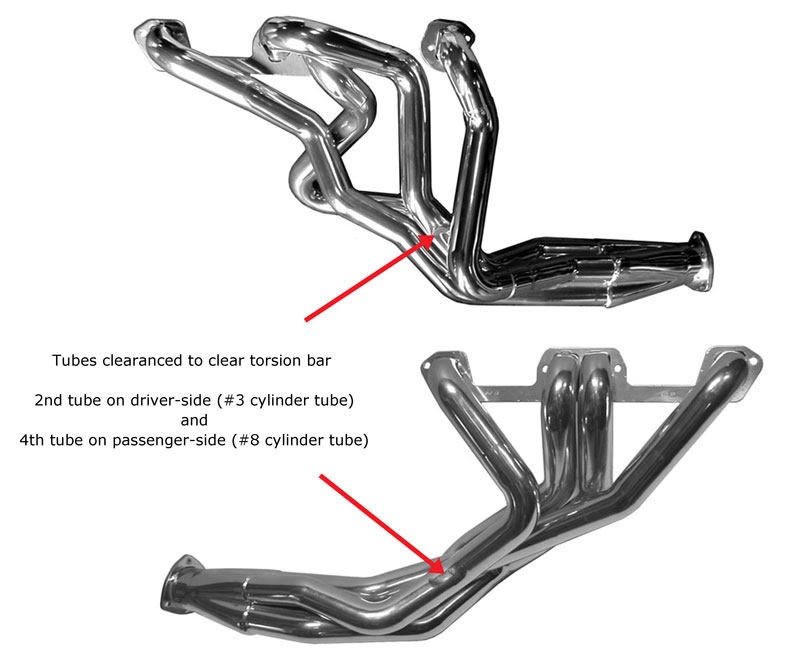

Torsion bar clearance

2nd tube on driver-side (#3 cylinder tube),

and 4th tube on passenger-side (#8 cylinder tube),

clearanced to clear torsion bar

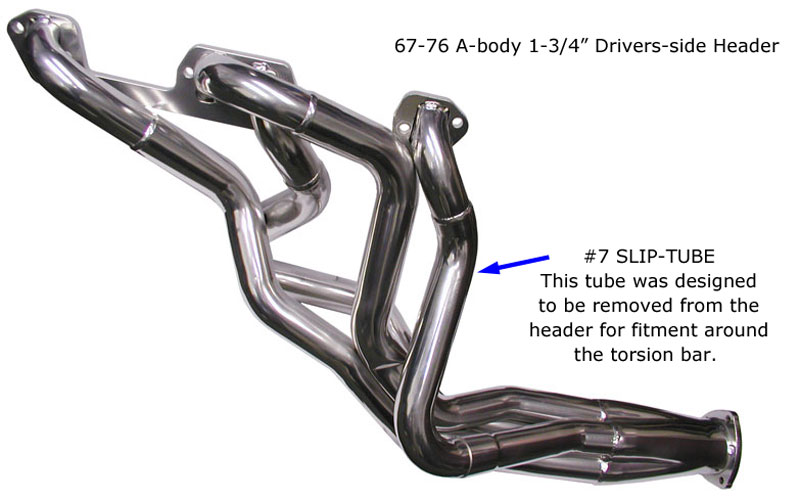

A-body header design for torsion bar suspensions

Driver-side header designed with a slip-tube,

torsion bar removal not required





Starter Clearance



Oil Filter



Short screw-on filter

using a 90 adapter shown

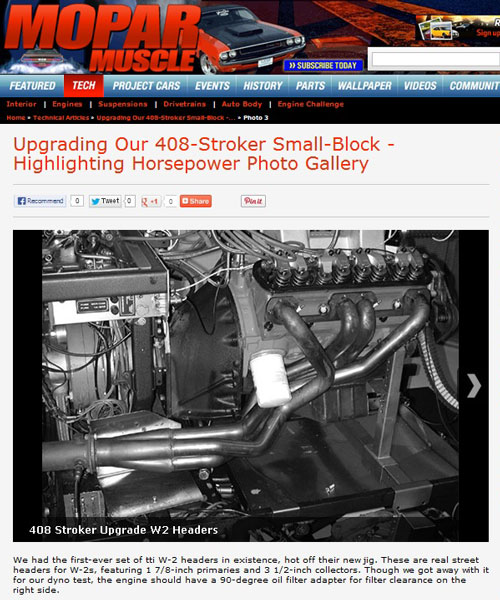

Dyno Results



Mopar Muscle 2002

408 Stroker Upgrade

Installation Instructions

67-76 A-body

B, E, F, M-body



TOP OF PAGE





COMPONENTS & REPLACEMENT PARTS



PART DESCRIPTION

PART NUMBER

PRICE

STANDARD TRANS:  MODIFIED Z-BAR

For A-body standard transmission applications.

See illustration sheet #340ZB

# ZB340

$ 133.50 each



COLUMN SHIFT APPLICATIONS:  B & E-BODY TORQUE SHAFT ASSEMBLY

Due to various manufacturing designs of the column shift linkage in some 71-74 B-body and 70-74 E-body vehicles, a modified design Torque Shaft Assembly may be required.

A Torque Shaft Assembly is required if the drivers-side stock straight torque shaft rod is mounted below the torsion bar.  The stock straight torque shaft rod passes directly through the space where the header tubes or exhaust pipe to manifolds, must go.

This precision bent assembly with laser-cut ends allows you to maintain your column shift linkage, and is a direct bolt-on replacement of your stock torque shaft rod.  [Illustration sheet B7174TSA .pdf]





727 Transmission

# B7174TSA-7

$ 54.50 each



904 Transmission

# B7174TSA-9

$ 54.50 each



HEADER GASKETS

HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

Note:  (2) Supplied with header purchase.

# GA-HG340W2RS

$ 29.85 /set



HEADER BOLTS

5/16"-18x1

Note:  (12) Supplied with header purchase.

# BO516

$ .94 each



3.5" 3-BOLT COLLECTOR GASKET

HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

Note:  (2) Supplied with header purchase.

# GA-RG35

$ 5.37 each



HEADER REDUCER ADAPTERS to transition headers to an exhaust system.

Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & hardware.

Note:  (1 set) Supplied with header purchase.  Size required when ordering.




3.5" x 2.5" x 9.0" long reducers

# RED35X25X9

$ 69.00 /set



3.5" x 3.0" x 9.0" long adapters

# RED35X30X9

$ 72.00 /set



3.5" x 3.5" x 9.0" long adapters

# RED35X35X9

$ 76.00 /set





TOP OF PAGE





ADDITIONAL OPTIONS

 Evacuation tubes and EGT probe fittings can be installed prior to coating headers.  Installation of these options are considered a "Special-Order".  Please allow an additional 3-4 weeks for the special order work and the coating process.

 Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.



DESCRIPTION

PART NO.

PRICE

O2 SENSOR BUNGS + INSTALLATION

Steel fitting, 18mm threads, installed in the header collectors or reducer adapters.

Installation locations:  Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.



Installed in Header Collectors ...

# MISC-02COL

$ 117.38 /set

 Installed in Drivers-side Header Collectors ...

# MISC-02COL-DS

$ 68.69 each

 Installed in Reducer/Adapters ...

# MISC-02RED

$ 117.38 /set

 Installed in Drivers-side Reducer/Adapters ...

# MISC-02RED-DS

$ 68.69 each









EVACUATION TUBE + INSTALLATION

  Evacuation tubes will be installed in the reducers or adapters

  Drivers-side installed in the 9 o'clock location

  Passenger-side installed in the 3 o'clock location





Evacuation tube installed in the header collectors ...

# SP005-COL $ 126.40 /set

Evacuation tube installed in the header reducer adapters ...

# SP005-RED

$ 126.40 /set









CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION

  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes

  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters

  Drivers-side installed in the 9 o'clock location

  Passenger-side installed in the 3 o'clock location

# KIT-EV34145

$ 152.20



Kit + Tube Installation



EGT PROBE FITTING + INSTALLATION

  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread

  Typical installed 1" from the header flange

  (!) Specify which cylinder tubes when ordering.

# MISC-EGT1

1st fitting  $  97.26

# MISC-EGT2

2nd fitting  $ 114.30

# MISC-EGT3

3rd fitting  $ 131.70

# MISC-EGT4

4th fitting  $ 149.08

# MISC-EGT5

5th fitting  $ 166.46

# MISC-EGT6

6th fitting  $ 183.83

# MISC-EGT7

7th fitting  $ 201.21

# MISC-EGT8

8th fitting  $ 218.59





TOP OF PAGE





Updated: February 02, 2024







  About Us

  Coating Options

  Mopar Body Style ID

TUBE TECHNOLOGIES, INC.

TTi Performance Exhaust & Headers

1555 Consumer Circle

Corona, CA 92878-3226

Phone: (951) 371-4878   Fax: (951) 371-6143

Mon-Fri, 8am-4pm PST

  Contact Us

  Product Maintenance & Care

  Mopar Related Websites

  Ordering Information

  Limited Warranty

  Media / Published Articles

  Shipping Rates

  Illustration & Installation Instructions



  Authorized Distributors

  FAQs

Designed and maintained by Tube Technologies, Inc.
