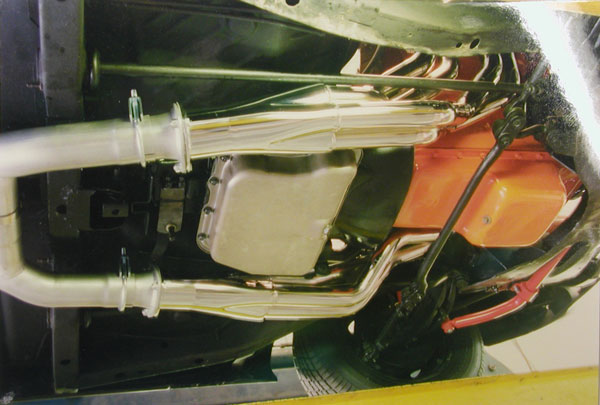

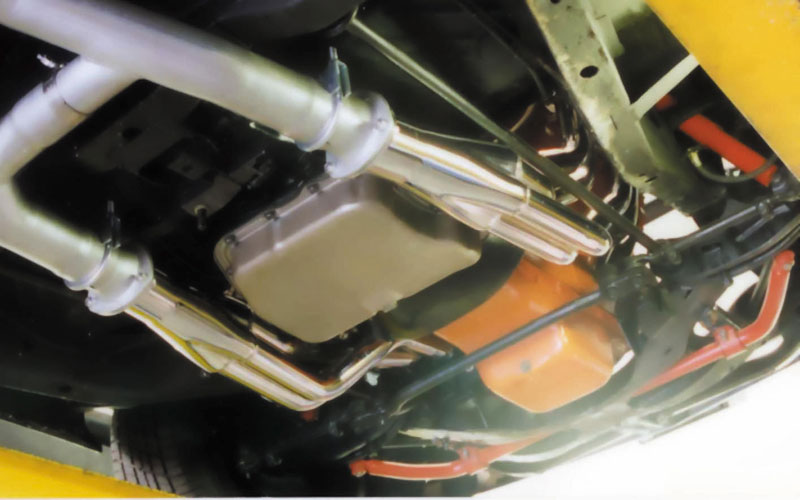

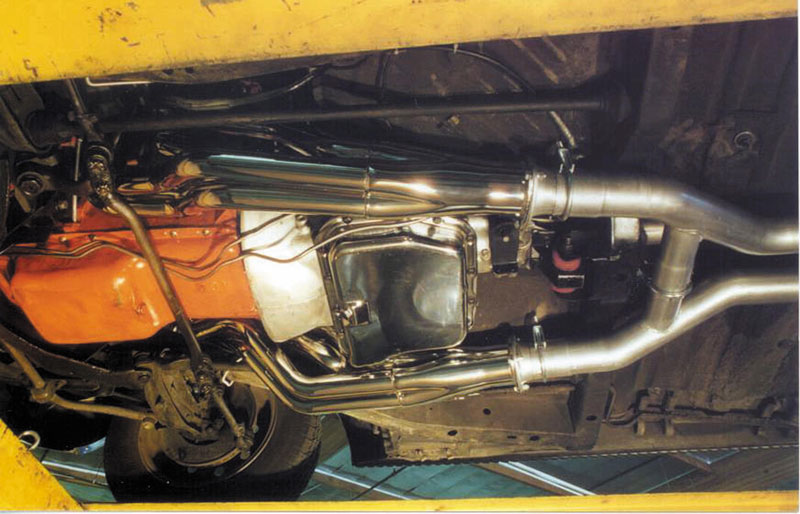

HEADER FITMENT • Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions) • Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

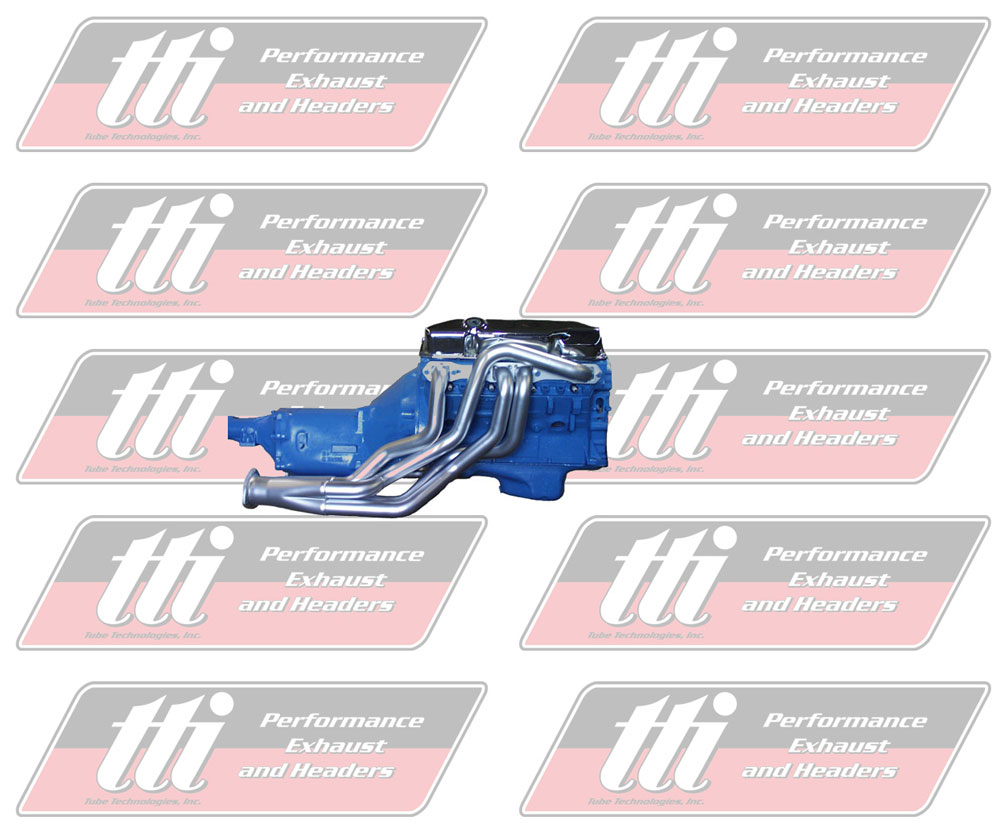

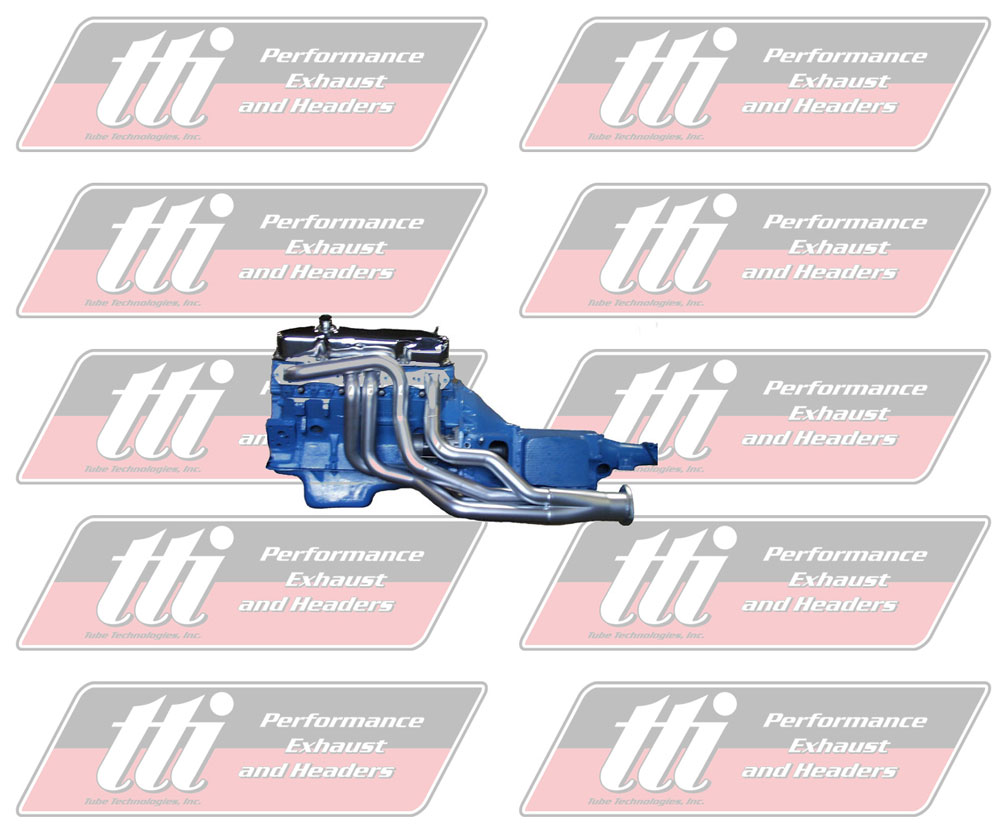

• 1.  PLATFORM: 67-76 A-BODY, 62-74 B-BODY and 70-74 E-BODY • Headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  2.  ENGINE SIZE / CYLINDER HEAD COMBINATIONS:     (Engine size & Cylinder head must be stated when ordering)  383-400 B-ENGINES: 383-400 B-ENGINES must use the following "RAISED-PORT" cylinder heads for these headers to fit the 383-400 B-engine application combination... INDY-440-1 INDY-440SR EDELBROCK VICTOR*, PROCOMP* or STAGE-6* *Edelbrock Victor, Procomp & Stage-6 heads are 3/16" taller and 5/8" wider requiring the following when using with the 383-400 B-engine combination... 1. Modification to the passenger-side header.  When ordering, request modification and state cylinder heads using.  Passenger-side engine block modification fee $53.00, part #SP004.  Special-Order lead-time is approximately 5-7 weeks. 2. 67-76 A-body applications with Torsion bar suspension will require a Motor Plate to locate the engine. • Cylinder Head Studs:  Head studs may be used on the Passenger-side, however, on the Drivers-side the header tubes will not clear the cylinder head studs below the #3, #5 and #7 cylinders.  We recommend ARP bolts for clearance in these areas.  440-RB ENGINES: 440, 413, 426-wedge, 493-572 crate 440-RB ENGINES must use an OEM or EQUIVALENT "STOCK-PORT" cylinder head... FACTORY 915, 906, 452, BULLDOG, EDELBROCK E-STREET, EDELBROCK PERFORMER RPM, INDY-EZ, STAGE-5, TRICK FLOW, 440-SOURCE STEALTH, EDELBROCK VICTOR*, PROCOMP* or STAGE-6* *67-76 A-body applications with Torsion bar suspension will require a Motor Plate to locate the engine. • Cylinder Head Studs:  Head studs may be used on the Passenger-side, however, on the Drivers-side the header tubes will not clear the cylinder head studs below the #3, #5 and #7 cylinders.  We recommend ARP bolts for clearance in these areas. 3.  SPARK PLUGS: STRAIGHT or ANGLED Headers are designed with adequate plug clearance for angled plugs. 4.  FRONT SUSPENSION: OEM or Equivalent, retaining torsion bars COILOVER / TUBULAR:  The following coilover systems have been fit-checked with these headers and found there to be no clearance issues...  RMS Alterktion, Magnumforce Tubular, Magnumforce Modular Transformer, Control Freak, Gerst/QA1, HDK, Hotchkis • Steering Linkage:  OEM with torsion bars or Rack & Pinion without torsion bars. • Steering note applies to 67-76 A-bodies & 62-65 B-bodies Only:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty. • UniSteer Performance:  Headers will not clear the UniSteer rack and pinion. 5.  ENGINE MOUNTS: OEM, SCHUMACHER or EQUIVALENT • 67-76 A-body applications with a stock front suspension, using Edelbrock Victor, Procomp or Stage 6 cylinder heads, will require using a motor plate to locate the engine. 6.  AUTO TRANS: YES • Floor Shift:  Some applications with an auto transmission may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector, see illustration sheet #3703 • Applications with a 3-section throttle rod will require modification to the bell-crank & pivot shaft, see illustration sheet #101 • GM4L60E/GM4L65E Transmissions:  Modification will be required to the passenger-side header to clear these transmissions.  When ordering, request modification and state transmission model.  Passenger-side engine block modification fee $53.60, part #SP004.  Special-Order lead-time: 5-7 weeks. 7.  STANDARD TRANS: YES • Flywheel:  10.5" 130-tooth ring gear & 11" 143-tooth ring gear. • 440 applications with an 11" flywheel 143-tooth ring gear must use a RobbMc Performance starter #3005. • Clutch Linkage:  OEM • Keisler/Tremec TKO-500/600 Transmissions:  It is imperative that the output-end of the tail shaft is in exactly the same position as the stock transmission output shaft for the headers to fit properly. • 67-76 A-body applications:  A modified Z-bar will be required, sold separately part #ZB307. 8.  FLOOR SHIFT: YES • Auto Trans:  Some applications with an auto transmission may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector, see illustration sheet #3703 9.  COLUMN SHIFT: NO • DIY alternative:  Modify your shift linkage to achieve clearance. TTi does not make a linkage to satisfy this situation. 10.  PUSH BUTTON: YES 11.  MANUAL STEERING: YES •  67-76 A-bodies & 62-65 B-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies & 62-65 B-bodies only.  Headers will fit 66-76 B-bodies & 70-74 E-body applications with Quick/Fast Ratio arms.) 12. POWER-STEERING: A-BODY applications with torsion bars:  NO, will not clear power-steering. B & E-BODY:  YES •  67-76 A-bodies & 62-65 B-bodies Only / Steering:  This header will not clear a Quick/Fast Ratio Pitman & Idler arm that is longer than the OEM arms.  Example; The Fast Ratio Pitman & Idler arms by Firm Feel, Inc. are 3/4" longer then stock.  DIY clearance can be achieved by dimpling the header tube(s), however, doing this modification will void your header and coating warranty.  (This note pertains to 67-76 A-bodies & 62-65 B-bodies only.  Headers will fit 66-76 B-bodies & 70-74 E-body applications with Quick/Fast Ratio arms.) 13. AIR CONDITIONING: YES   14. STARTERS: THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES... • Chrysler part no's:  R53005984, 56027702AC • Mopar Performance part no's:  P5249644AB, P5007860, P4286522 • PowerMaster Performance XS torque starter no:  9523  • 440 applications with an 11" flywheel 143-tooth ring gear must use a RobbMc Performance starter #3005. 15.  BELL HOUSING: ALL • Lakewood Bellhousing scatter shield:  Modification is required to the passenger-side bell-housing.  A half moon shaped notch will need to be ground down approximately 1/4" deep to clear the header tube. 16.  OIL FILTERS: OEM 17.  OIL PANS: OEM, MILODON • Milodon street & strip part no's:  30930, 30931, 31010 • Milodon road race part no's:  31580, 31581 18.  VALVE COVERS: OEM, CAST ALUMINUM, STAMPED STEEL, FABRICATED ALUMINUM      PART NO'S & PRICING •  Click here for coating option details, header maintenance, and warranty information. •  Header sets include:  Header gaskets, header bolts (12), and header reducer adapters to transition to an exhaust system.    (!) Exhaust system size required when ordering. •  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice. HEADER FINISH 2.0" BIG BLOCK HEADERS PART NUMBER PRICE C0:  RAW MILD STEEL • Bare metal • Very susceptible to rust # TTi 440-200C0 $ 902.00 /set C4:  CERAMIC COATED • Silver satin (matte) exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º) # TTi 440-200C4 $ 1083.00 /set C5:  POLISHED CERAMIC COATED • Polished silver exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º) # TTi 440-200C5 $ 1119.00 /set Updated: February 06, 2024   Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here     INSTALLATION INSTRUCTIONS LH: DRIVERS-SIDE 43" width x 17" tall RH: PASSENGER-SIDE 42" width x 17" tall INSTALL INSTRUCTIONS To view and print PDFs, you must have a supported version of Adobe's Acrobat Reader installed.  This program is available for free, download by going directly to Adobe.com         TOP OF PAGE     COMPONENTS & REPLACEMENT PARTS   DESCRIPTION PART NUMBER PRICE Z-BAR for 67-76 A-body applications with STANDARD TRANS Modified design Z-bar.  See illustration sheet #307ZB For use with TTi Header No's: 383440-134, 440-200, 400SR-218, HEMI625-218, HEMI625-214, HEMI218A  (!) TTi does not make a modified Z-bar for all header/vehicle application combinations. # ZB307 $ 133.50 each   HEADER GASKETS  HTX-900 gasket material:  A high density non-asbestos fiber metal core composite consisting of graphite coated, hi-temperature facing material chemically and mechanically fused to an expanded steel core. A proven hi-performance exhaust gasket composite used extensively within the automotive racing industry, where characteristics such as structural strength and hi-temp load retention are required to withstand severe under-the-hood operating environments. Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket.  Note:  (2) Supplied with header purchase. # GA-HG440 $ 31.90 /set     HEADER BOLTS 3/8-16x1 GR5 zinc plated. Note:  (12) Supplied with header purchase. # BO38 $ .94 each     3.5" 3-BOLT COLLECTOR GASKET     HTX-900 gasket material:  A high density non-asbestos fiber metal core composite consisting of graphite coated, hi-temperature facing material chemically and mechanically fused to an expanded steel core. Recommendation:  Permatex 81160 gasket silicone sealant.  Use a very thin layer of Hi-temp silicone sealer on each side of gasket. Note:  (2) Supplied with header purchase. # GA-RG35 $ 5.37 each     HEADER REDUCER ADAPTERS Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & hardware. Note:  (1 set) Supplied with header purchase.  Size required when ordering.   For 67-76 A-body, 66-74 B-body & 70-74 E-body applications Collector size x Exhaust system size x Reducer adapter length 3.5" x 2.5" x 6" long reducers # RED35X25X6 $ 66.50 /set   3.5" x 3.0" x 6" long reducers # RED35X30X6 $ 70.00 /set   3.5" x 3.5" x 6" long adapters # RED35X35X6 $ 74.00 /set     HEADER REDUCER ADAPTERS Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & hardware. Note:  (1 set) Supplied with header purchase.  Size required when ordering.   For 62-65 B-body applications Collector size x Exhaust system size   3.5" x 2.5" pre-bent design reducers # RED35X25B6265 $ 66.50 /set   3.5" x 3.0" pre-bent design reducers # RED35X30B6265 $ 70.00 /set     For 62-65 B-body applications using Indy cylinder heads Collector size x Exhaust system size 3.5" x 2.5" pre-bent design reducers # RED35X25B6265-I $ 66.50 /set   3.5" x 3.0" pre-bent design reducers # RED35X30B6265-I $ 70.00 /set   TOP OF PAGE     ADDITIONAL OPTIONS • Evacuation tubes and EGT probe fittings can be installed prior to coating headers.  Installation of these options are considered a "Special-Order".  Please allow an additional 3-4 weeks for the special order work and the coating process. • Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.   DESCRIPTION PART NO. PRICE O2 SENSOR BUNGS + INSTALLATION Steel fitting, 18mm threads, installed in the header collectors or reducer adapters. Installation locations:  Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.     Installed in Header Collectors ... # MISC-02COL $ 117.38 /set  Installed in Drivers-side Header Collectors ... # MISC-02COL-DS $ 68.69 each  Installed in Reducer/Adapters ... # MISC-02RED $ 117.38 /set  Installed in Drivers-side Reducer/Adapters ... # MISC-02RED-DS $ 68.69 each         EVACUATION TUBE + INSTALLATION •  Evacuation tubes will be installed in the reducers or adapters •  Drivers-side installed in the 9 o'clock location •  Passenger-side installed in the 3 o'clock location     Evacuation tube installed in the header collectors ... # SP005-COL $ 126.40 /set Evacuation tube installed in the header reducer adapters ... # SP005-RED $ 126.40 /set         CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION •  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes •  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters •  Drivers-side installed in the 9 o'clock location •  Passenger-side installed in the 3 o'clock location # KIT-EV34145 $ 152.20   Kit + Tube Installation   EGT PROBE FITTING + INSTALLATION •  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread •  Typical installed 1" from the header flange •  (!) Specify which cylinder tubes when ordering. # MISC-EGT1 1st fitting  $  97.26 # MISC-EGT2 2nd fitting  $ 114.30 # MISC-EGT3 3rd fitting  $ 131.70 # MISC-EGT4 4th fitting  $ 149.08 # MISC-EGT5 5th fitting  $ 166.46 # MISC-EGT6 6th fitting  $ 183.83 # MISC-EGT7 7th fitting  $ 201.21 # MISC-EGT8 8th fitting  $ 218.59
