HEADER FITMENT • Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions) • Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

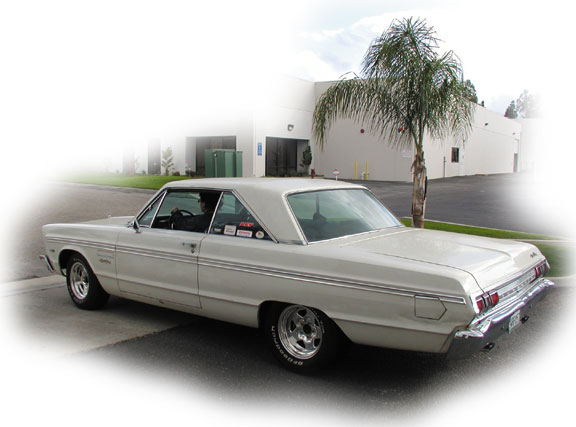

1.  PLATFORM:	65-73 C-body
2.  ENGINES:	383-400 B-ENGINES • Headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.
3.  CYLINDER HEADS:	OEM or EQUIVALENT - FACTORY 915, 906, 452, BULLDOG, EDELBROCK E-STREET, EDELBROCK PERFORMER RPM, INDY-EZ, STAGE 5, TRICK FLOW, 440-SOURCE • Cylinder Head Studs:  Head studs may be used on the Passenger-side, however, on the Drivers-side the header tubes will not clear the cylinder head studs below the #3, #5 and #7 cylinders.  We recommend ARP bolts for clearance in these areas.
4.  SPARK PLUGS:	STRAIGHT or ANGLED
5.  FRONT SUSPENSION:	OEM or EQUIVALENT with torsion bars • Steering Linkage:  OEM with torsion bars or Rack & Pinion without torsion bars. • UniSteer Performance Rack and Pinion:  This header will clear without any clearance issues.
6.  ENGINE MOUNTS:	OEM • Headers fit with Schumacher Creative Services engine mounts or equivalent.
7.  AUTO TRANS:	YES  • Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration sheet #3703
8.  STANDARD TRANS:	YES • Keisler Tremec TKO-500/600 Transmission:  Correct installation is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.
9.  FLOOR SHIFT:	YES • Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration sheet #3703
10.  COLUMN SHIFT:	YES • 71-74 B-body & 70-74 E-body applications may require a modified Torque Shaft Assembly.  Torque Shaft Assembly sold separately #B7174TSA
11.  PUSH BUTTON:	YES
12.  STEERING:	YES, POWER-STEERING or MANUAL STEERING
13. AIR CONDITIONING:	YES
14.  STARTERS:	THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES... • AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)... OEM or MINI STARTERS Chrysler part no's:  R53005984, 56027702AC Mopar Performance part no's:  P5249644AB, P5007860, P4286522 PowerMaster Performance starter no's:  9513, 9523 (Catalog pg. 30)
15.  BELL HOUSING:	• Lakewood Bellhousing scatter shield:  Modification is required to the passenger-side bell-housing.  A half moon shaped notch will need to be ground down approximately 1/4" deep to clear the header tube.
16.  OIL FILTERS:	OEM
17.  OIL PANS:	OEM, MILODON or EQUIVALENT • Milodon part no's:  30935, 30936, 30940, 30941 • Pro Touring pan part no's:  31590 & 31595
18.  VALVE COVERS:	OEM, CAST ALUMINUM, STAMPED STEEL

TOP OF PAGE

TOP OF PAGE

TOP OF PAGE

• ADDITIONAL OPTIONS •  Evacuation tubes and EGT probe fittings can be installed prior to coating headers.  Installation of these options are considered a "Special-Order".  Please allow an additional 3-4 weeks for the special order work and the coating process. •  Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.   DESCRIPTION PART NO. PRICE O2 SENSOR BUNGS + INSTALLATION Steel fitting, 18mm threads, installed in the header collectors or reducer adapters. Installation locations:  Drivers-side, 9 o'clock / Passenger-side, 3 o'clock.     Installed in Header Collectors ... # MISC-02COL $ 117.38 /set  Installed in Drivers-side Header Collectors ... # MISC-02COL-DS $ 68.69 each  Installed in Reducer/Adapters ... # MISC-02RED $ 117.38 /set  Installed in Drivers-side Reducer/Adapters ... # MISC-02RED-DS $ 68.69 each         EVACUATION TUBE + INSTALLATION •  Evacuation tubes will be installed in the reducers or adapters •  Drivers-side installed in the 9 o'clock location •  Passenger-side installed in the 3 o'clock location     Evacuation tube installed in the header collectors ... # SP005-COL $ 126.40 /set Evacuation tube installed in the header reducer adapters ... # SP005-RED $ 126.40 /set         CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION •  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes •  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters •  Drivers-side installed in the 9 o'clock location •  Passenger-side installed in the 3 o'clock location # KIT-EV34145 $ 152.20   Kit + Tube Installation   EGT PROBE FITTING + INSTALLATION •  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread •  Typical installed 1" from the header flange •  (!) Specify which cylinder tubes when ordering. # MISC-EGT1 1st fitting  $  97.26 # MISC-EGT2 2nd fitting  $ 114.30 # MISC-EGT3 3rd fitting  $ 131.70 # MISC-EGT4 4th fitting  $ 149.08 # MISC-EGT5 5th fitting  $ 166.46 # MISC-EGT6 6th fitting  $ 183.83 # MISC-EGT7 7th fitting  $ 201.21 # MISC-EGT8 8th fitting  $ 218.59
