Home <...  GEN III HEMI HEADER OPTIONS <...  1-3/4" GEN III HEMI HEADERS (For Coilover Suspension applications)

MOPAR CLASSICS:  A,B,E-bodies

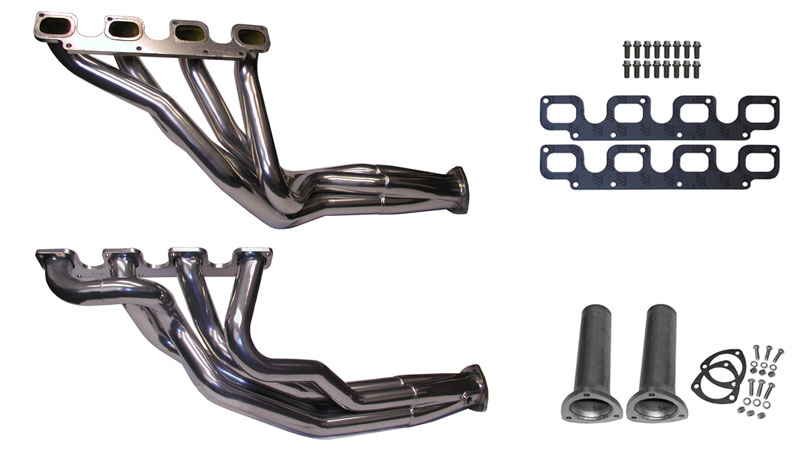

1-3/4" Gen III HEMI HEADERS

(!)  Front Suspension:  Must be Coilover/Tubular, without torsion bars

(!)  Starter Location:  Must be located on the Drivers-side



PART NUMBER:  61HCA-R2

HEADER FEATURES

• 1-3/4" O.D. Primary Tubes

• 3.0" Collectors, equipped with O2 bungs

• 3/8" thick Flanges, laser-cut, contoured for a leak free fit

One piece header tubes / No slip tubes

• Under chassis design:  Above the steering center link design offers maximum header to ground clearance

• Header Material:  Constructed of 16 gauge mild steel tubing.  Mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow. The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes.



HEADER FITMENT

PART NO'S & PRICING

INSTALLATION INSTRUCTIONS

ACCESSORIES & REPLACEMENT PARTS

SPECIAL-ORDER OPTIONS:  EVAC or EGT FITTINGS







HEADER FITMENT

• Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions)

• Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

1.  PLATFORM:

67-76 A-BODY, 62-74 B-BODY and 70-74 E-BODY

2.  V8 ENGINES:

5.7L, 6.1L, 6.2L (Hellcat)

Headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.

• 5.7L Engines:  Plug the passenger-side EGR port by tapping the hole and installing a set screw to plug it.

3.  CYLINDER HEADS:

OEM

4.  FRONT SUSPENSION:

COILOVER / TUBULAR:  The following coilover systems have been fit-checked with these headers and found there to be no clearance issues...  RMS Alterktion, Magnumforce Tubular, Magnumforce Modular Transformer, Control Freak, Gerst/QA1, HDK, Hotchkis

5.

- - -

6.  AUTO TRANS:

904, 727, GM 4L60E, 545RFE

• Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  Click here to see illustration [3703]

7.  STANDARD TRANS:

A833 4-SPEED, TKO500* 5-SPEED, TKO600* 6-SPEED, T56 TRANS

• Z-bar Clutch Linkage...



67-76 A-body applications must use a hydraulic clutch.  However, DIY Z-bar clearance can be achieved by modifying the mechanical Z-bar clutch linkage.  TTi does not make a clutch linkage to satisfy this situation.

  62-74 B-body & 70-74 E-body applications can use a hydraulic or mechanical Mopar clutch linkage system.

*Tremec TKO-500/600:  (!) Correct installation of the Tremec Transmissions is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.

8.  FLOOR SHIFT:

YES

• Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  Click here to see illustration [3703]

9.  COLUMN SHIFT:

NO

• However, column shift clearance can be achieved by modifying your shift linkage.  TTi does not make a linkage to satisfy this situation.

10.

 - - -

11.  MANUAL STEERING:

YES

12.  POWER-STEERING:

YES

13.  AIR CONDITIONING:

YES

14.  STARTERS:

The following STARTERS have been fit-checked with these headers and found there to be no clearance issues...

• AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)...

Bouchillon Performance starter part no: 61R274

Chrysler starter part no': 56029274AA

• STANDARD TRANS with an 11" flywheel (143-tooth ring gear)...

Chrysler starter part no': 56029274AA

RobbMc Performance starter part no: 3005

Bouchillon Performance starter part no: 61R274

(!) Starter must be located on the DRIVERS-SIDE for these headers to fit.

15.  BELL-HOUSING:

OEM or EQUIVALENT

16.  OIL FILTER:

OEM

17.  OIL PANS:



OEM, MILODON or EQUIVALENT

• Milodon part no:  31000   (Will not clear part no's:  31002, 31003)





PART NO'S & PRICING

•  Click here for coating option details, header maintenance, and warranty information.

•  Header sets include:  Header gaskets, header bolts (16), and header reducer adapters to transition to an exhaust system.

   (!) Exhaust system size required when ordering.

•  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice.

HEADER FINISH

1-3/4" Gen III HEMI HEADERS

(For Coilover Suspension applications)

PART NUMBER

PRICE

C0:  RAW MILD STEEL

• Bare metal

• Very susceptible to rust

# TTi 61HCA-R2C0

$ 803.00 /set

C4:  CERAMIC COATED

• Silver satin (matte) exterior

• Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)



# TTi 61HCA-R2C4

$ 984.00 /set

C5:  POLISHED CERAMIC COATED

• Polished silver exterior

• Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)



# TTi 61HCA-R2C5

$ 1020.00 /set



Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here





INSTALLATION INSTRUCTIONS



INSTALLATION INSTRUCTIONS

To view and print PDFs, you must have a supported version of Adobe's Acrobat Reader installed.  This program is available for free, download by going directly to Adobe.com

1-3/4" G3 HEMI HEADERS

(For Coilover Suspension applications)

O2 SENSOR BUNGS

Header collectors equipped with bungs.



TOP OF PAGE





ACCESSORIES & REPLACEMENT PARTS





PART NUMBER

PRICE

HEADER GASKETS

•  Port size: 1.880" X 1.380"

•  Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

•  HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

Note:  (2) Supplied with header purchase.

# GA-HG61

$ 31.90 /set

3.0" 3-BOLT COLLECTOR GASKET

•  Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

•  HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

Note:  (2) Supplied with header purchase.

# GA-RG30

$ 4.79 /each

HEADER BOLTS

•  8mm-1.25 X 25mm

Note:  (16) Supplied with header purchase.

# BO125

$ 0.94 /each

HEADER REDUCER ADAPTERS to transition headers to an exhaust system

Made of 16 gauge aluminized tubing, 3/8" thick flanges, includes 3-bolt gaskets & mounting hardware.

Note:  (1 set) Supplied with header purchase.  Size required when ordering.





3.0" x 2.5" x 9.0" long reducers

# RED30X25X9

$ 57.50 /set



3.0" x 3.0" x 9.0" long adapters

# RED30X30X9

$ 62.50 /set



TOP OF PAGE





ADDITIONAL OPTIONS

•  Evacuation tubes and EGT probe fittings can be installed prior to coating headers.  Installation of these options are considered a "Special-Order".  Please allow an additional 3-4 weeks for the special order work and the coating process.

•  Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.





PART NUMBER

PRICE



EVACUATION TUBE + INSTALLATION

•  Evacuation tubes will be installed in the reducers or adapters

•  Drivers-side installed in the 9 o'clock location

•  Passenger-side installed in the 3 o'clock location

# SP005-RED

$ 126.40 /set

CRANKCASE EVACUATION SYSTEM KIT + INSTALLATION OF EVAC TUBES

•  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes

•  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters

•  Drivers-side installed in the 9 o'clock location

•  Passenger-side installed in the 3 o'clock location

# KIT-EV34145

$ 152.50

EGT PROBE FITTING + INSTALLATION

•  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread

•  Typical installed 1" from the header flange

•  (!) Specify which cylinder tubes when ordering.

# MISC-EGT1

1st fitting  $  97.26

# MISC-EGT2

2nd fitting  $ 114.30

# MISC-EGT3

3rd fitting  $ 131.70

# MISC-EGT4

4th fitting  $ 149.08

# MISC-EGT5

5th fitting  $ 166.46

# MISC-EGT6

6th fitting  $ 183.83

# MISC-EGT7

7th fitting  $ 201.21

# MISC-EGT8

8th fitting  $ 218.59



TOP OF PAGE
