HEADER FITMENT • Our headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.  (Click here for the factory dimensions) • Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

1.  PLATFORM:	67-76 A-BODY, 62-74 B-BODY and 70-74 E-BODY
2.  V8 ENGINES:	5.7L, 6.1L, 6.2L (Hellcat)
3.  CYLINDER HEADS:	OEM
4.  FRONT SUSPENSION:	OEM or EQUIVALENT, RETAINING THE TORSION BARS •  UniSteer Performance Rack and Pinion:  Headers will not clear. •  Firm Feel fast ratio pitman & idler arm:  Headers will not clear.  The Firm Feel arm is 3/4" longer than the stock arm.  (The OEM arm measures 5-1/4" from center to center)
5.  ENGINE MOUNTS:	OUR MODIFIED DESIGN MOTOR MOUNTS/SPOOL MOUNTS ARE REQUIRED, sold separately.  [TTi Motor mounts]
6.  AUTO TRANS:	904, 727, GM 4L60E, 545RFE •  Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration #3703
7.  STANDARD TRANS:	A833 4-SPEED, TKO500* 5-SPEED, TKO600* 6-SPEED, T56 TRANS • Z-bar Clutch Linkage...   67-76 A-body applications must use a hydraulic clutch.  However, DIY Z-bar clearance can be achieved by modifying the mechanical Z-bar clutch linkage.  TTi does not make a clutch linkage to satisfy this situation.   62-74 B-body & 70-74 E-body applications can use a hydraulic or mechanical Mopar clutch linkage system. *Tremec TKO-500/600:  (!) Correct installation of the Tremec Transmissions is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.
8.  FLOOR SHIFT:	YES •  Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  See illustration #3703
9.  COLUMN SHIFT:	NO •  HOWEVER, column shift clearance can be achieved by modifying your shift linkage.  TTi does not make a linkage to satisfy this situation.
10.	- - -
11.  MANUAL STEERING:	Headers clear Manual-Steering & Borgeson P/S units only
12.  POWER-STEERING:	OEM & BORGESON UNIT 67-76 A-body Note:  DIY modification required to the units mounting holes.  The three mounting holes must be elongated to .810" to allow the steering unit to be moved away from the engine for adequate clearance from the header tubes. ◊ Click here to see illustration [7913]
13.  AIR CONDITIONING:	YES – HEADERS WILL CLEAR THE FOLLOWING A/C COMPRESSORS...  •  Chrysler/Mopar part no’s: 68202994AA (superseded no’s 68028917AB, 68028917AC, 68028917AD, 68028917AE, RL028917AB, RL028917AC) and 68158259AE (superseded no’s 68158259AC, 68158259AD) •  Bouchillon Performance Engineering part no:  64F917   (!) NO – HEADERS WILL NOT CLEAR THE FACTORY LOW-MOUNT A/C COMPRESSOR #4596492AC...  Drivers-side header will not clear in A, B or E-body applications, however, DIY clearance can be achieved in B & E-body applications by making a small indentation in the #1 header tube to clear this factory low-mount compressor.  See illustration sheet #920AC
14.  STARTERS:	(!) STARTER MUST BE LOCATED ON THE DRIVERS-SIDE FOR THESE HEADERS TO FIT. (!) THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES... •  AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)... Chrysler starter part no's:  R53005984, 56027702AC Mopar Performance starter part no's:  P5249644AB, P5007860, P4286522 Powermaster Performance XS Torque starter part no:  9523 (Catalog pg. 30) Bouchillon Performance starter part no: 61R736 •  STANDARD TRANS with an 11" flywheel (143-tooth ring gear)... Chrysler starter part no': 56029274AA RobbMc Performance starter part no: 3005 Bouchillon Performance starter part no: 61R736
15.  BELL-HOUSING:	OEM or EQUIVALENT
16.  OIL FILTER:	OEM or REMOTE MOUNT •  67-76 A-body, 62-65 B-body & 73-74 B-body applications:  An oil filter blocking plate is required in conjunction with a remote mounted oil filter kit.  Sold separately, part no: FBP5761 •  Remote oil filter kits available through Milodon, part no: 21560
17.  OIL PANS:	OEM, MILODON or EQUIVALENT •  Milodon part no:  31000   (Will not clear part no's:  31002, 31003)

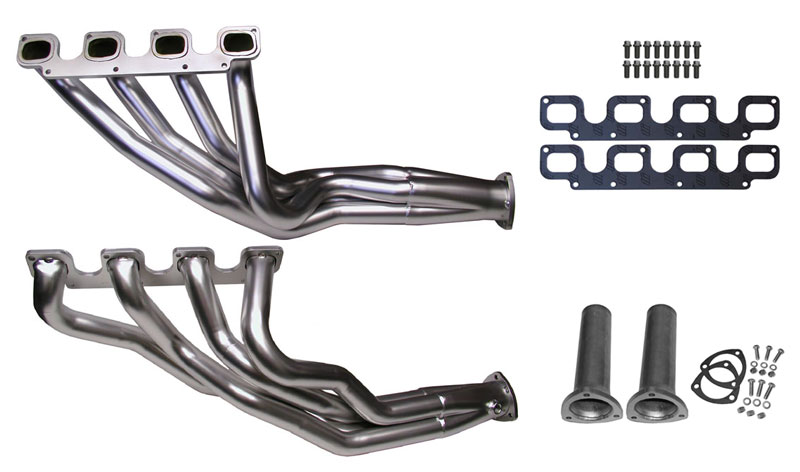

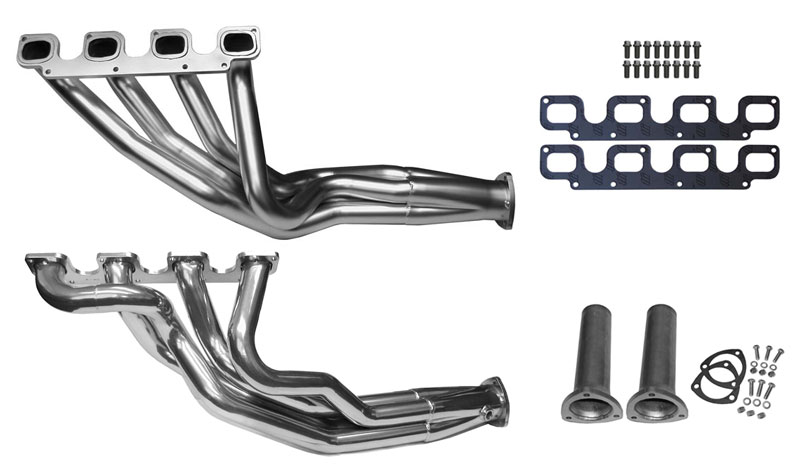

PART NO'S & PRICING •  Click here for coating option details, header maintenance, and warranty information. •  Header sets include:  Header gaskets, header bolts (16), and header reducer adapters to transition to an exhaust system.    (!) Exhaust system size required when ordering. •  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice.

HEADER FINISH	1-3/4" Gen III HEMI HEADERS Designed for applications using the Borgeson power-steering unit	BODY STYLE	PART NUMBER	PRICE
	C0:  RAW MILD STEEL • Bare metal • Very susceptible to rust	67-76 A-body 62-65 B-body	# TTi 61WPA-C0	$ 803.00 /set
		66-74 B-body 70-74 E-body	# TTi 61WPBE-C0
	C4:  CERAMIC COATED • Silver satin (matte) exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)	67-76 A-body 62-65 B-body	# TTi 61WPA-C4	$ 984.00 /set
		66-74 B-body 70-74 E-body	# TTi 61WPBE-C4
	C5:  POLISHED CERAMIC COATED • Polished silver exterior • Thermal barrier coated interior (Reduces under hood temperature by approximately 50º)	67-76 A-body 62-65 B-body	# TTi 61WPA-C5	$ 1020.00 /set
		66-74 B-body 70-74 E-body	# TTi 61WPBE-C5

Updated: July 19, 2024

Coupled with a TTi Exhaust System, these headers become even more efficient!  ...Click here
