Home <...  GEN 3 HEMI HEADER OPTIONS <...  1-3/4" GEN 3 HEMI HEADERS

MOPAR CLASSICS:  A,B,C,E-bodies

1-3/4" GEN 3 HEMI HEADERS

(!)  Front Suspension:  Stock or Equivalent, retaining torsion bars

(!)  Starter Location:  Must be located on the Drivers-side

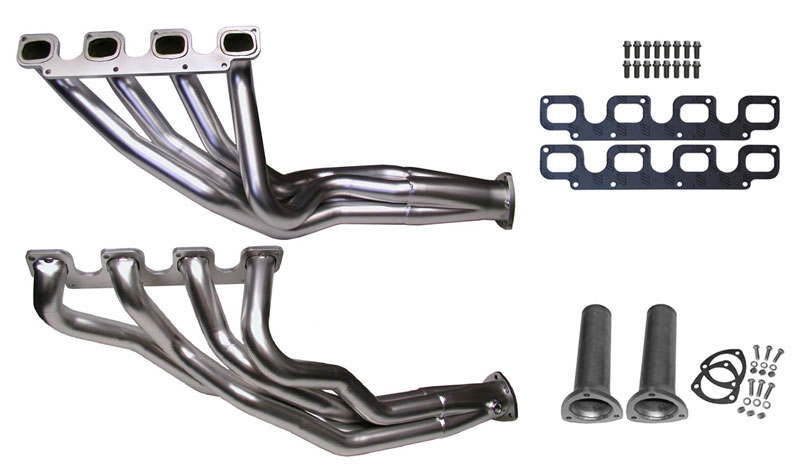

Header Part No: 61HC

HEADER FEATURES

1-3/4" O.D. Primary Tubes

3.0" Collectors, equipped with O2 bungs

3/8" thick Flanges, laser-cut, contoured for a leak free fit

One piece header tubes / No slip tubes

Under chassis design:  Above the steering center link design offers maximum header to ground clearance

Header Material:  Constructed of 16 gauge mild steel tubing.  Mandrel bent on sophisticated computer controlled bending machines for precise fit and uninterrupted exhaust flow. The mandrel bending process maintains a constant inside diameter of the tube for a smoother finish with no restriction of flow and no crimping of the tubes.



HEADER FITMENT

PART NO'S & PRICING $

REQUIRED PARTS

INSTALLATION INSTRUCTIONS

REPLACEMENT PARTS

SPECIAL-ORDER OPTIONS:  EVAC, EGT





HEADER FITMENT...

  Due to various manufacturing designs, aftermarket parts, engine configurations, suspension combinations, etc... TTi cannot ensure headers and exhaust systems to fit all combinations.  However, we have done our best to accommodate both factory and aftermarket component combinations.  In some cases, slight modification or repositioning may be required on your part to clear the specific situation.

1.  PLATFORM:

67-76 A-BODY, 62-74 B-BODY and 70-74 E-BODY

2.  V8 ENGINES:

5.7L, 6.1L, 6.2L (Hellcat)

Headers were designed to fit with the engines located to the factory specifications.  If the engine is not located correctly in the chassis, the headers will not fit properly.  We strongly suggest you check your engine location prior to installation.

3.  CYLINDER HEADS:

OEM

4.  FRONT SUSPENSION:

STOCK or EQUIVALENT, RETAINING THE TORSION BARS

  UniSteer Performance Rack and Pinion:  Headers will not clear.

  Firm Feel fast ratio pitman & idler arm:  Headers will not clear.  The Firm Feel arm is 3/4" longer than the stock arm.  (The OEM arm measures 5-1/4" from center to center)

5.  ENGINE MOUNTS:

OUR MODIFIED DESIGN MOTOR MOUNTS/SPOOL MOUNTS ARE REQUIRED, sold separately.  [TTi Motor mounts]

6.  AUTO TRANS:

904, 727, GM 4L60E, 545RFE

  Floor Shift:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  ◊ Click here to see illustration [3703]

7.  STANDARD TRANS:

A-833 4-SPEED, TREMEC TKO 5-SPEED, TREMEC TKO 6-SPEED

  Z-bar Clutch Linkage...



◦  67-76 A-body applications must use a hydraulic clutch.  However, DIY Z-bar clearance can be achieved by modifying the mechanical Z-bar clutch linkage.  TTi does not make a clutch linkage to satisfy this situation.

  ◦  62-74 B-body & 70-74 E-body applications can use a hydraulic or mechanical Mopar clutch linkage system.

  Tremec TKO-500/600:  (!) Correct installation of the Tremec Transmissions is imperative.  The output-end of the tail shaft must be in exactly the same position as the stock transmission output shaft for the headers to fit properly.

8.  FLOOR SHIFT:

YES

  Auto Trans:  Some applications may require the adjustable swivel & the lower rod to be re-positioned to clear the header collector.  ◊ Click here to see illustration [3703]

9.  COLUMN SHIFT:

NO

  HOWEVER, column shift clearance can be achieved by modifying your shift linkage.  TTi does not make a linkage to satisfy this situation.

10.

 - - -

11.  MANUAL STEERING:

YES

12.  POWER-STEERING:

67-76 A-BODY:  NO, MANUAL STEERING ONLY.

62-74 B-BODY & 70-74 E-BODY:  YES, OEM P/S BOX ONLY.

  If using a Borgeson P/S units, see Header part no's: TTI61WPA (A-bodies) or TTI61WPBE (B&E-bodies)

13.  AIR CONDITIONING:

LOW-MOUNT AIR COMPRESSORS:  NO

The #1 header tube will not clear an early factory low-mount compressor.  HOWEVER, DIY clearance can be achieved in 66-72 B-body & 70-74 E-body applications by making a small indentation in the #1 header tube.

Click here to see photo of the tube indentation in the #1 header tube.

LATE MODEL COMPRESSORS:  YES

The #1 header tube should clear the later model compressors in all applications.

Click here to see photos of late model compressors that do clear the #1 header tube.

14.  STARTERS:

(!) STARTER MUST BE LOCATED ON THE DRIVERS-SIDE FOR THESE HEADERS TO FIT.

(!) THE FOLLOWING STARTERS HAVE BEEN FIT-CHECKED WITH THESE HEADERS AND FOUND THERE TO BE NO CLEARANCE ISSUES...

  AUTO TRANS / STANDARD TRANS with a 10.5" flywheel (130-tooth ring gear)...

Chrysler starter part no's:  R53005984, 56027702AC

Mopar Performance starter part no's:  P5249644AB, P5007860, P4286522

Powermaster Performance XS Torque starter part no:  9523 (Catalog pg. 30)

Bouchillon Performance starter part no: 61R736

  STANDARD TRANS with an 11" flywheel (143-tooth ring gear)...

Chrysler starter part no': 56029274AA

RobbMc Performance starter part no: 3005

Bouchillon Performance starter part no: 61R736

15.  BELL-HOUSING:

OEM or EQUIVALENT

16.  OIL FILTER:

0EM or REMOTE MOUNT

  67-76 A-body, 62-65 B-body & 73-74 B-body applications:  An oil filter blocking plate is required in conjunction with a remote mounted oil filter kit.  Sold separately, part no: FBP5761

  66-72 B-body & 70-74 E-body applications:  An angled Jeep/Truck OEM filter adapter is required.

  Remote oil filter kits available through Milodon, part no: 21560

17.  OIL PANS:





OEM, MILODON or EQUIVALENT

  Milodon part no:  31000   (Will not clear part no's:  31002, 31003)

TOP OF PAGE



PART NO'S & PRICING $ ...

  Click here for coating option details, header maintenance, and warranty information.

  Header sets include:  Header gaskets, header bolts (16), and header reducer adapters to transition to an exhaust system.

   (!) Exhaust system size required when ordering.

  Prices do not include Shipping, Handling or California Sales Tax, if applicable.  Prices subject to change without notice.

HEADER FINISH

1-3/4" GEN III HEMI HEADERS

(For Torsion Bar Suspensions)

PART NO.

PRICE

RAW MILD STEEL

  Bare metal

  Very susceptible to rust



TTi 61HC-C0

$ 688.00 /set

CERAMIC COATED

  Silver satin (matte) exterior

  Thermal barrier coated interior



TTi 61HC-C4

$ 867.00 /set



POLISHED CERAMIC COATED

  Polished silver exterior

  Thermal barrier coated interior





TTi 61HC-C5

$ 892.00 /set

 REQUIRED PARTS . . .



67-72 A-BODY MOTOR MOUNTS

  Biscuit style mounts

  Rubber Insulators are not included.  The stock insulators can be used, however they will require modification.

  Torsion bar suspensions:  An Oil Filter Blocking Plate will be required in conjunction with a remote mounted oil filter kit.

  Information sheet 57MMA

57MMA

$ 150.80 /set

73-76 A-BODY MOTOR MOUNTS

  Spool style mounts

  Torsion bar suspensions:  An Oil Filter Blocking Plate will be required in conjunction with a remote mounted oil filter kit.

  Information sheet 57SMA73

57SMA73

$ 282.90 /set

62-65 B-BODY MOTOR MOUNTS

  Spool style mounts

  Torsion bar suspensions:  An Oil Filter Blocking Plate will be required in conjunction with a remote mounted oil filter kit.

  Information sheet 57SMB625

57SMB625

$ 328.00 /set

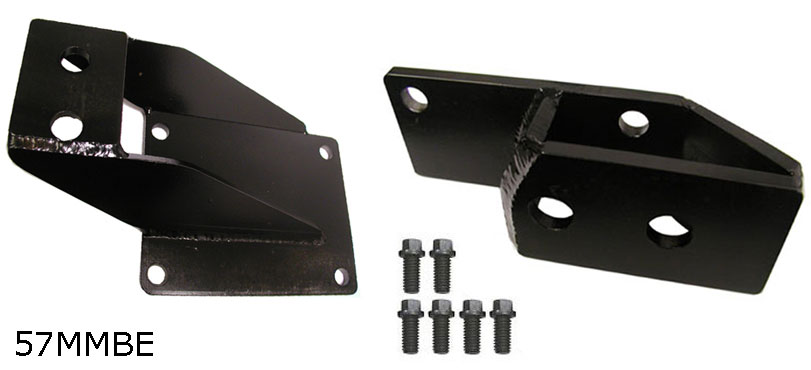

66-72 B-BODY & 70-74 E-BODY MOTOR MOUNTS

  Biscuit style mounts

  Rubber Insulators are not included.  The stock insulators can be used, however they will require modification.

  Information sheet 57MMBE

57MMBE

$ 150.80 /set

73-74 B-BODY MOTOR MOUNTS

  Spool style mounts

  Torsion bar suspensions:  An Oil Filter Blocking Plate will be required in conjunction with a remote mounted oil filter kit.

  Information sheet 57SMB73

57SMB73

$ 282.90 /set

OIL FILTER BLOCKING PLATE

  67-76 A-body, 62-65 B-body, and 73-74 B-body / Torsion bar front suspension applications will require an oil filter blocking plate in conjunction with a remote mounted oil filter kit.  (Oil filter kits available through a Mopar parts dealer)

  Information sheet 3706

FBP5761

$ 77.00



TOP OF PAGE



INSTALLATION INSTRUCTIONS ...



INSTALLATION INSTRUCTIONS

To view and print PDFs, you must have a supported version of Adobe's Acrobat Reader installed.  This program is available for free, download by going directly to Adobe.com

1-3/4" GEN III HEMI HEADERS

(For Torsion Bar Suspensions)

O2 SENSOR BUNGS

Header collectors equipped with bungs.



OIL FILTER BLOCKING PLATE

REMOTE MOUNT OIL FILTER

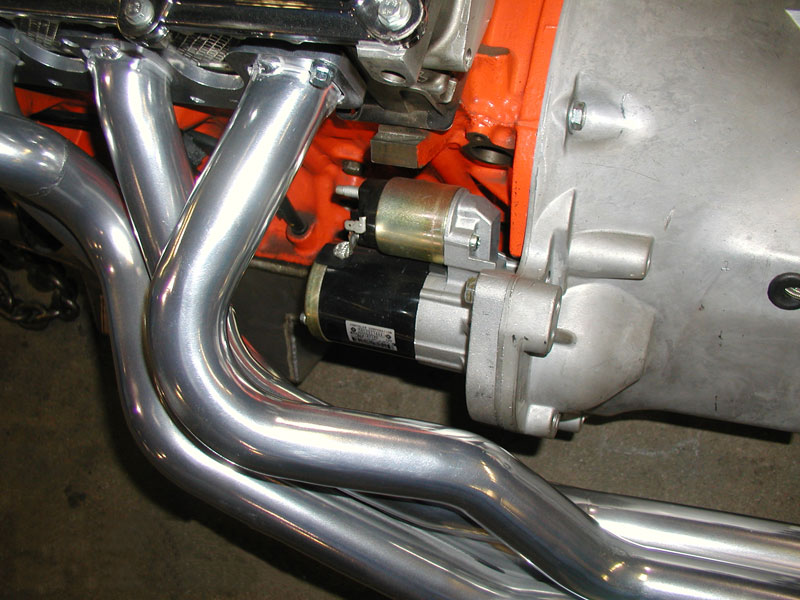

MINI STARTER CLEARANCE

Shown:  Chrysler #56027702AC

67-76 A-body, 62-65 & 73-74 B-body / Stock suspension applications:  An oil filter blocking plate is required in conjunction with a remote mounted oil filter kit.




TOP OF PAGE



REPLACEMENT PARTS ...





PART NO.

PRICE

HEADER GASKETS

  Port size: 1.880" X 1.380"

  Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

  HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

GA-HG61

$ 27.40 /set

3.0" 3-BOLT COLLECTOR GASKET

  Recommendation:  Use a very thin layer of High-Temp Silicone Sealer on each side of gasket.

  HTX-900 gasket:  A high density non-asbestos fiber metal core composite consisting of graphite-coated, high-temperature facing material chemically and mechanically fused to an expanded steel core.

GA-RG30

$ 4.10 /each

HEADER BOLTS

  8mm-1.25 X 25mm

BO125

$ 0.80 /each

HEADER REDUCER ADAPTERS

  Used to transition headers to an exhaust system.

  16 gauge aluminized tubing, with 3/8" thick flanges welded to the inlet

  Includes 3-bolt gaskets & mounting hardware

  (!) Exhaust system size required when ordering





3.0" x 2.5" x 9.0" long reducers

RED30X25X9

$ 46.60 /set

3.0" x 3.0" x 9.0" long adapters

RED30X30X9

$ 46.60 /set



TOP OF PAGE



ADDITIONAL OPTIONS ...

  Evacuation tubes and EGT probe fittings can be installed prior to coating headers.  Installation of these options are considered a "Special-Order".  Please allow an additional 3-4 weeks for the special order work and the coating process.

  Special-Order Deposit Required:  TTi requires a $50.00 non-refundable deposit for the following Special-Orders prior to the start of your order.  The balance will be due upon completion.





PART NO.

PRICE









EVACUATION TUBE

  1/2" pipe, 3.5" long, external thread, cut at 45 angle

5015

$ 18.00 /each



EVACUATION TUBE + INSTALLATION

  Evacuation tubes will be installed in the reducers or adapters

  Drivers-side installed in the 9 o'clock location

  Passenger-side installed in the 3 o'clock location

SP005-RED

$ 87.50

CRANKCASE EVACUATION SYSTEM KIT + TUBE INSTALLATION

  Allstar Performance Crankcase Evacuation System:  2 chrome plated push-on valve cover breathers, breather grommets, check valves and 3.5'' threaded tubes

  The 3.5" long threaded tubes will be used from the kit and will be installed in the reducer or adapters

  Drivers-side installed in the 9 o'clock location

  Passenger-side installed in the 3 o'clock location

KIT-EV34145

$ 110.55



EGT PROBE FITTING + INSTALLATION

  304SS exhaust gas temperature fitting, 1/8" pipe, internal thread

  Typical installed 1" from the header flange

  (!) Specify which cylinder tubes when ordering.

MISC-EGT1

MISC-EGT2

MISC-EGT3

MISC-EGT4

MISC-EGT5

MISC-EGT6

MISC-EGT7

MISC-EGT8

1st fitting  $ 53.60

2nd fitting  $ 63.60

3rd fitting  $ 73.60

4th fitting  $ 83.60

5th fitting  $ 93.60

6th fitting  $ 103.60

7th fitting  $ 113.60

8th fitting  $ 123.60



TOP OF PAGE
